RDF Sensor – Sea Side Aquatics

About This Product

The Sea Side Aquatics RDF Sensor is a replacement water level sensor designed for compatible Sea Side Aquatics Rotary Drum Filter (RDF) systems. This essential filtration component monitors water levels within the drum filter, allowing the controller to determine when an automatic cleaning cycle is needed to remove accumulated debris and maintain efficient pond filtration.

Rotary Drum Filters provide advanced mechanical filtration for koi ponds and ornamental water gardens by capturing suspended waste, fish debris, algae, and other particles on a fine mesh drum screen. As debris accumulates, water movement through the screen becomes restricted, causing a change in water level. The RDF sensor detects this change and communicates with the filtration controller to initiate the appropriate cleaning cycle.

A properly functioning sensor is essential for reliable automatic operation. When an RDF sensor becomes damaged, contaminated, or stops responding correctly, the filtration system may experience unnecessary cleaning cycles, delayed backwashing, or reduced filtration performance.

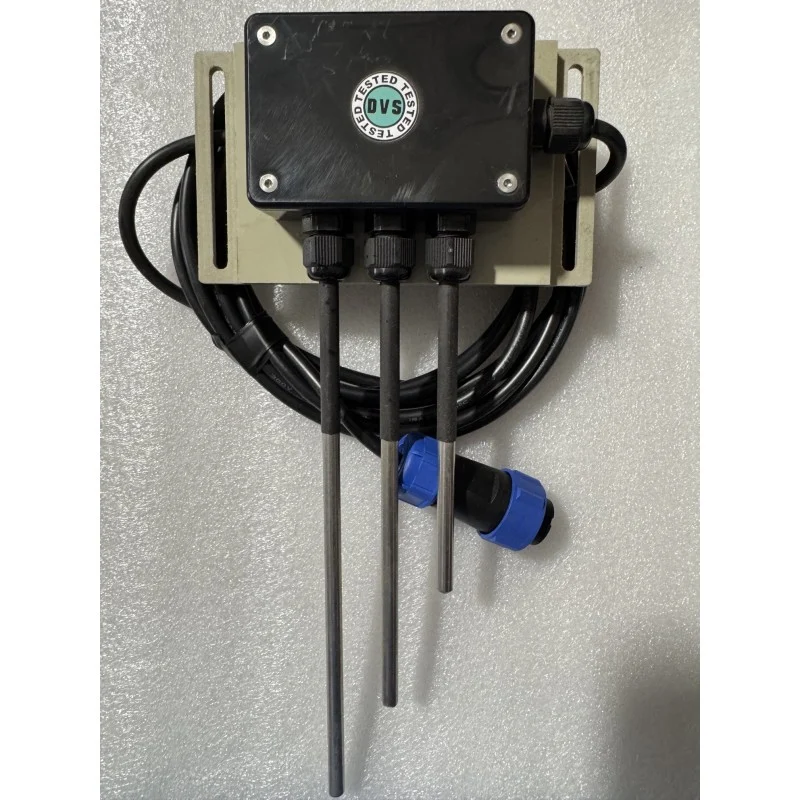

The Sea Side Aquatics RDF Sensor is available in three configurations: Float Sensor, 2-Pin Probe Sensor, and 3-Pin Probe Sensor. Each version is designed for specific RDF controller systems, making it important to select the correct sensor for your equipment.

The Float Sensor is compatible with Eco 20, Entry 25, and Entry 25M systems. The 2-Pin Probe Sensor is designed for WiFi-enabled RDF controllers, while the 3-Pin Probe Sensor is intended for Version 2 controllers.

Whether you’re replacing a malfunctioning sensor, maintaining an existing filtration system, or restoring automatic drum cleaning functionality, the Sea Side Aquatics RDF Sensor provides a model-specific replacement solution for dependable pond filtration.

Features:

• Genuine Sea Side Aquatics replacement sensor designed for compatible Rotary Drum Filter systems.
• Automatic water level monitoring detects changes in water levels associated with debris accumulation on the drum screen.
• Supports automatic cleaning cycles by providing water level information to the compatible RDF controller.
• Restores reliable filtration operation when replacing damaged, worn, or malfunctioning sensors.
• Three sensor configurations available to accommodate different Sea Side Aquatics RDF controller generations.
• Float Sensor option compatible with Eco 20, Entry 25, and Entry 25M filtration systems.
• 2-Pin Probe Sensor option designed for compatible WiFi-enabled RDF controllers.
• 3-Pin Probe Sensor option designed specifically for Version 2 RDF controllers.
• Helps maintain efficient debris removal by supporting timely drum screen cleaning.
• Reduces unnecessary manual intervention by restoring automatic water level detection.
• Supports consistent pond filtration performance through reliable controller operation.
• Convenient replacement solution eliminates the need to replace an entire RDF system when only the sensor requires servicing.
• Suitable for koi pond filtration and ornamental water garden applications using compatible RDF equipment.
• Model-specific replacement design ensures proper compatibility when the correct sensor version is selected.
• Ideal for routine equipment maintenance and repairs to existing Sea Side Aquatics drum filtration systems.

Specifications:

• Brand: Sea Side Aquatics
• Product name: RDF Sensor
• Product type: Rotary Drum Filter replacement sensor
• Primary function: Water level detection and filtration cleaning control
• Compatible filtration type: Rotary Drum Filter (RDF)
• Available sensor types: Float Sensor, 2-Pin Probe Sensor, 3-Pin Probe Sensor
• Float Sensor compatibility: Eco 20, Entry 25, Entry 25M
• 2-Pin Probe Sensor compatibility: Sea Side Aquatics WiFi RDF Controller
• 3-Pin Probe Sensor compatibility: Sea Side Aquatics Version 2 Controller
• Connection type: Model-specific float switch or probe connection
• Operating function: Water level detection
• Controller communication: Wired connection to compatible RDF controller
• Application: Automatic drum cleaning and water level monitoring
• Aquatic environment: Freshwater koi ponds and ornamental water gardens
• Installation location: RDF water level sensing position, according to controller configuration
• Power requirements: Supplied through the compatible controller; electrical specifications not published
• Sensor dimensions: Model-specific
• Cable length: Not specified
• Recommended application: Repair, maintenance, and restoration of automatic cleaning functionality in compatible Sea Side Aquatics RDF systems

Available Sensor Options:

Sensor Type	Compatible Equipment
Float Sensor	Eco 20, Entry 25, Entry 25M
2-Pin Probe Sensor	WiFi RDF Controller
3-Pin Probe Sensor	Version 2 RDF Controller

Installation and Maintenance Recommendations:

Always disconnect electrical power to the RDF controller and associated equipment before removing or replacing the sensor.

Identify the existing sensor configuration and verify compatibility with your Sea Side Aquatics RDF controller before installation. The different sensor versions are not interchangeable.

Carefully remove the existing sensor and inspect the mounting location, electrical connections, and surrounding components for debris, mineral deposits, or damage.

Install the replacement sensor according to the manufacturer’s instructions, ensuring it is properly positioned to detect water level changes within the drum filter.

After installation, restore power and verify that the controller correctly recognizes water level changes and initiates the cleaning cycle when required.

Periodically inspect the sensor for algae buildup, mineral deposits, or accumulated debris that may interfere with accurate operation.

Important Compatibility Information:

Select the correct sensor version for your RDF controller.

• Float Sensor: For Eco 20, Entry 25, and Entry 25M systems.
• 2-Pin Probe Sensor: For compatible WiFi RDF controllers.
• 3-Pin Probe Sensor: For Version 2 RDF controllers only.

The 2-Pin and 3-Pin versions should not be substituted for one another. The 3-Pin Probe Sensor is not compatible with Eco 20 systems.

Recommended application: Replacing worn or malfunctioning water level sensors to restore automatic cleaning, reliable water level detection, and efficient mechanical filtration in Sea Side Aquatics Rotary Drum Filter systems.
