Description
Unit comes with external cleaning up ( required installation )

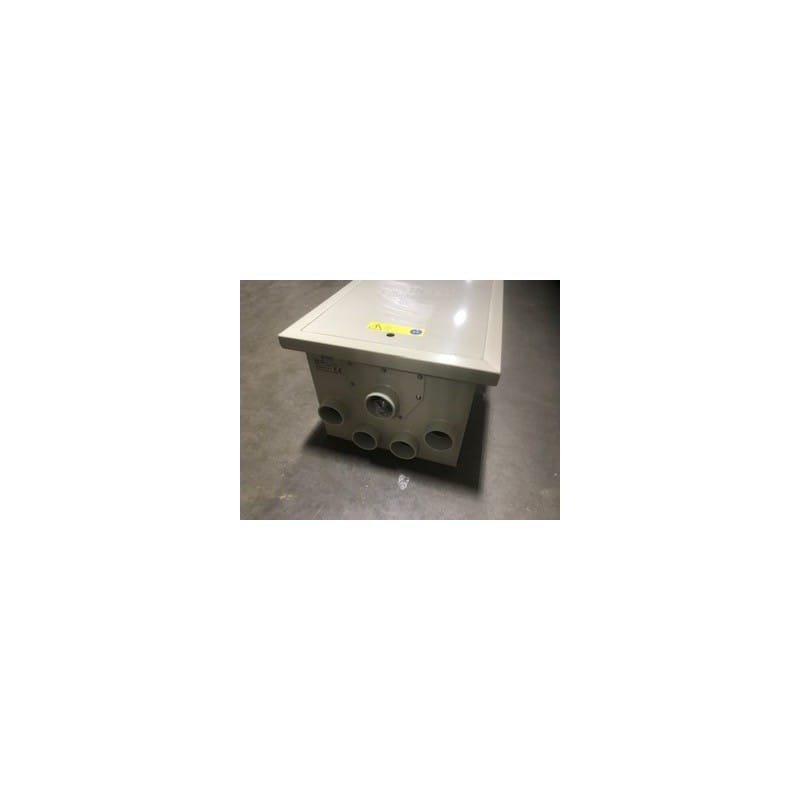

Specifications PP-35 ( New Design With 4 INLETS AND 2 OUTLETS PICTURE SHOWED 3 )
This is our newest wifi / digital controller that only with with 2 probe sensor and with other add on options like:
- Wifi ( Included )
- SMS message ( Not Included )
- Temperature ( Not Included )
- Water Level Sensor ( Not Included )
- Water Top Off ( Not Included )
- Force Cleaning ( Included )
- Manual Waste Tray Wash ( Included )
- and many more features please click on the below link to have access to the pdf files
MAX Flow 9250GPH
Pond suggested up to 18000GAL
Standard flow is 35 m3 / h
Gravity / Airlift / Pump fed
Installation height 17 cm
Material:
PP 15 mm housing / PP 20 mm drum
Stainless steel 316/304 / Silicone seal
Specifications:
4 x 110 mm inputs
2 x 110 mm outputs ( 4 extra 110 mm outputs on the side for pump fed )
110 mm waste water drain
Diameter drum 40 x 50 cm
Screen panel 75 micron stainless steel 316
Removable waste water container
Spray bar with removable mounting, high pressure PVC 40 bar Cover
Control box on filter
Turn / flush manual operation
Rinse level adjustable
Turn / rinse time adjustable
All components assembled in modules and therefore quickly interchangeable
