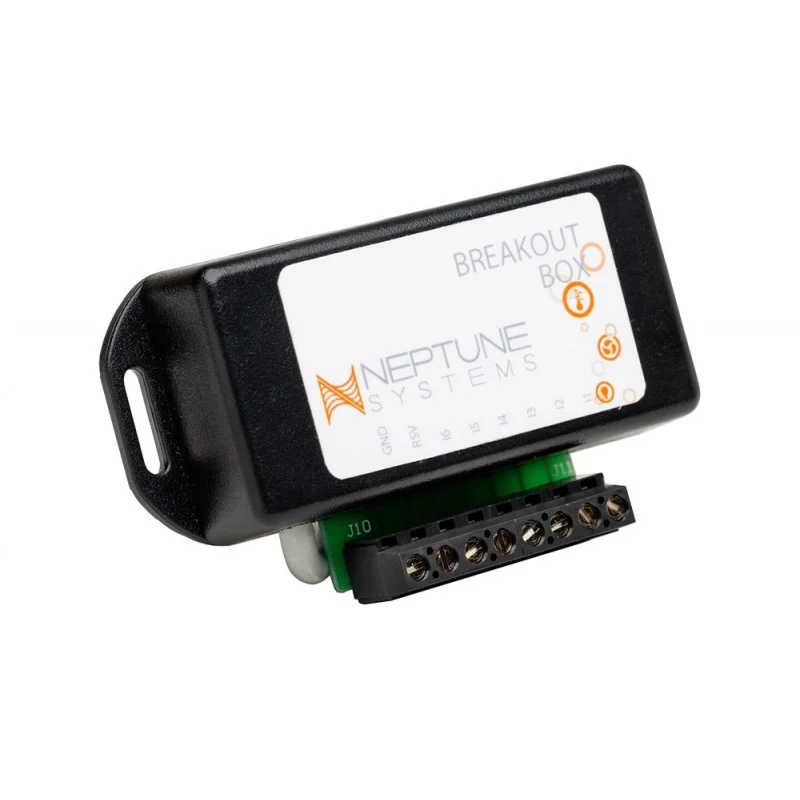

Neptune Apex IO Breakout Box

Product details

Neptune Apex IO Breakout Box is an aquarium controller accessory designed to expand what your Neptune controller can monitor. It connects to the controller’s I/O port using the supplied minidin 8 cable, then provides quick-connect terminal wiring for float switches and water-on-floor style sensor leads. This makes it practical to add alarm-style detection or safety shutdown inputs without complicated installation work.

Features:

• Expands sensor input options for compatible Neptune controllers by using the controller’s I/O port
• Plugs into the AquaController I/O connection with a 5' cable (minidin 8 cable)
• Quick Connect Terminals make it possible to connect float switch or water-sensor leads without soldering or special tools
• Supports additional digital inputs depending on the controller model: AC3, AC3 Pro, or PX 1000
• Includes 2 mounting holes for stable, easy installation

Specifications:

• Connection method: Minidin 8 cable into the AquaController I/O port
• Cable length: 5 ft
• Digital input support (AquaController 3 / AC3): 2 digital inputs
• Digital input support (AquaController 3 Pro / AC3Pro): 4 digital inputs
• Digital input support (PX 1000): 6 digital inputs
• Terminal type: Quick Connect Terminals (no soldering required)
• Mounting: 2 mounting holes
