ENTRY C25 LOW RDF Combi ( NEW ) – Sea Side

Product details

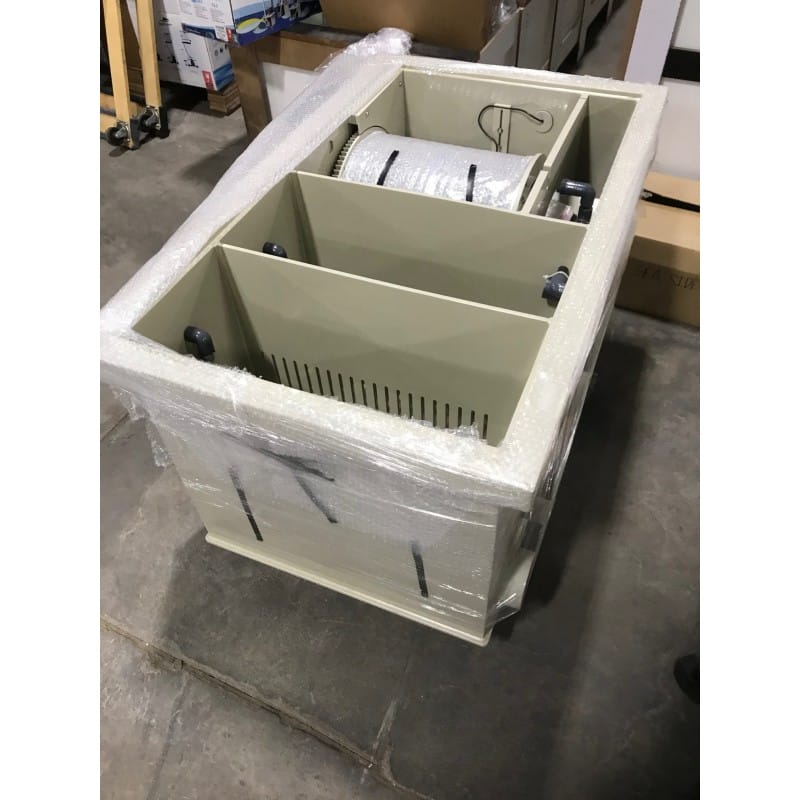

The "ENTRY C25 LOW RDF Combi ( NEW ) – Sea Side" is a gravity-only mechanical filter unit designed for pond or aquarium water polishing with automatic drum cleaning. It uses an RDF-style (rotating drum) cleaning approach to separate suspended particles and is intended to run with an installed setup that includes the provided inlet/outlet sizing, waste outlet, and the included control/cleaning functions. In practical use, the unit helps keep water clearer by continuously turning/rinsing the drum to flush collected debris into the waste water outlet, reducing manual cleaning.

Features:

• Gravity ONLY filtration for a pond/recirculation setup
• Automatic cleaning plug-and-play operation with a stainless-steel float
• Manual turn/rinse control plus adjustable turn/flush time
• Adjustable rinse level for tuning the flushing performance
• Demountable spray bar and removable flushing channel for servicing
• Modular design with interchangeable built-in parts
• Includes bio chamber capacity for 90 liters of Helix and separate bio chamber options for Japanese Mats/Matala Mat

Specifications:

• Maximum flow: 25 m3 / h
• Filtration mode: Gravity ONLY
• Installation height above water level: 17 cm
• Drum size (diameter x length): 38 cm x 40 cm
• Sieve panel: 120 micron, stainless steel 316
• Waste water outlet: 1 x 110 mm
• Drum bypass: 2 x 90 mm
• Inlets/Outlet: 2 x 4" inlets and 1 x 4" outlet
• Drive motor: 40 NM drive motor with 2.5 rpm
• Housing materials: PP 8 mm / PP15 mm / Drum PP 20
• Stainless / sealing materials: Stainless steel 316/304, silicone seal
• Bio chamber (Helix): 90 liters
• Bio chamber (Japanese Mats): Japanese Mats / Matala Mat
• Air bars: 2 x air bars
• Control: Automatic cleaning; turn/rinse manual control; adjustable turn/flush time; rinse level adjustable
• Quality marking: CE quality mark
