C35M Drum Filter With Moving Bed and Mat – RDF

Product details

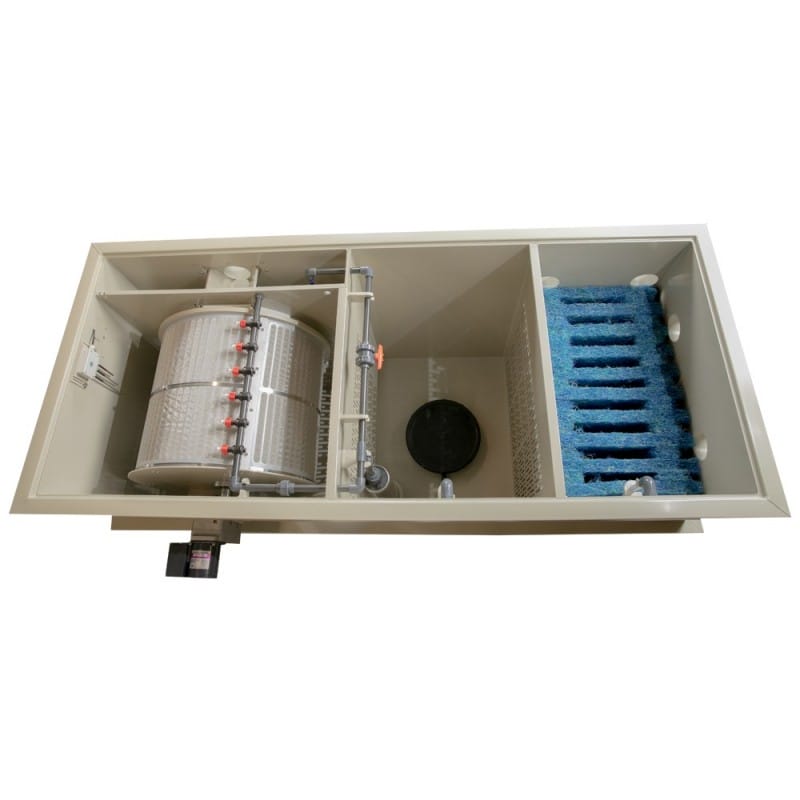

The C35M Drum Filter With Moving Bed and Mat – RDF is a pond filtration unit designed to handle mechanical waste removal combined with biological filtration. In practical terms, the drum filter captures suspended solids using a fine, rotating mesh, then automatically flushes the trapped waste away for cleaning. The moving bed with helix media and the mat chamber add surface area for beneficial bacteria, supporting ongoing biological water cleaning. This makes it well-suited for setups that want a compact, automated filtration workflow with integrated modules for easier maintenance and operation control.

Features:

• Automatic drum cleaning with sensor-based plug-and-play operation
• Manual run/wash mode and adjustable cleaning time and cleaning level
• Integrated internal cleaning components, including an internal booster pump
• Two built-in air disc air stones to support biological filtration in the moving bed area
• Moving bed for 200 liters of helix and a separate mat chamber with 300 liters capacity
• Removable spraybar and a removable waste water gutter (waste cleaning optional)
• Modular design with quickly changeable components and built-in dry run protection for the pond pump
• CE approved with detailed instructions included

Specifications:

• Shop/product name: C35M Drum Filter With Moving Bed and Mat – RDF
• Maximum flow: 35 m3/h
• Water running height: 12 cm
• Housing material: PP 10/15 mm / drum PP 15 mm
• Seal & corrosion-resistant parts: UV resistant seal; RVS 316/304
• Drum dimensions: 40 cm x 50 cm diameter
• Drum mesh: Patented woven 75/120 micron stainless steel mesh
• Drum bypass ports: 2 x 90 mm drum-bypass
• Waste outlet: 1 x 110 mm waste outlet
• Air filtration support: 2 built-in air disc of 35 cm
• Moving bed capacity: 200 liter helix
• Mat chamber capacity: 300 liters
• Installed cleaning pump: 5 bar
• Drive: 50 NM drive engine with 4 RPM
• Operating inputs/outputs: Standard inputs and outputs per drawing; changes possible
• Controls: Automatic cleaning via sensor; manual operation run/wash; adjustable cleaning time and cleaning level; 3 plugs for drum motor, cleaning, and pond pump
• Dry run protection: Standard dry run protection for pond pump
• Approx. external dimensions: 74.80 x 41.82 x 38.78 (tall) inches
• Lid: Included
