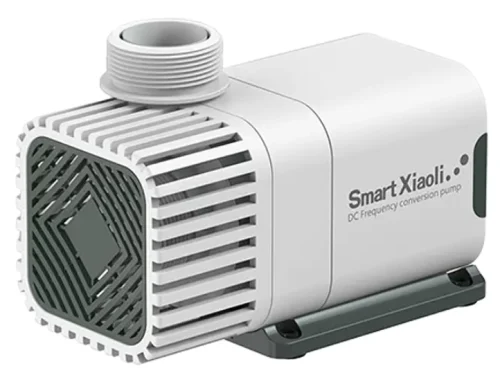

SunSun XDP-1000 DC Frequency Variation Pump

Product details

SunSun XDP-1000 DC Frequency Variation Pump is an adjustable DC circulation pump designed for aquarium water movement. Using low-voltage DC (24V) drive technology, it helps create controlled flow patterns for better in-tank circulation, supporting efficient water movement without relying on mains AC operation. The pump is intended to be installed in a suitable aquarium setup to deliver water through compatible hose/adapters and to run reliably with protective and monitoring features.

Features:

• Three-phase brushless inductive drive for efficient operation
• 24V low-voltage DC frequency conversion for safer, energy-conscious performance
• Multi-gear frequency conversion adjustment with sinusoidal wave output to reduce vibration and noise
• Shut-off protection with water-shutdown detection, fault alarm, and automatic restart
• Closed impeller design to improve head and flow efficiency
• Ceramic core construction for wear resistance and reduced rust risk
• Designed for dual use with dilute sea water and to avoid copper components in construction

Specifications:

• Voltage: DC 24V
• Power consumption: 12W
• Maximum head height (H-max): 2.2 m
• Maximum flow rate (Output): 1000 L/h
• Hose adapter size: 12/16/20 mm
