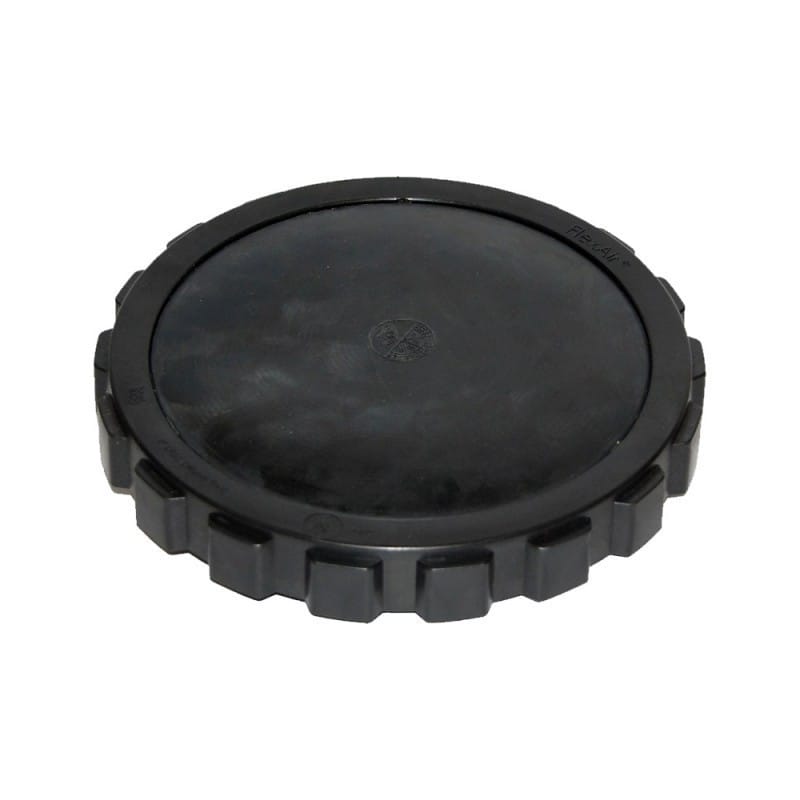

Rhino II 4″ Drain Replacement Air Diffuser – Aquadyne

About This Product

The Rhino II 4″ Drain Replacement Diffuser is a high-quality replacement aeration component designed specifically for the Aquadyne Rhino II 4-inch Aerated Bottom Drain. Engineered to restore efficient air distribution and water circulation, this replacement diffuser helps maintain proper oxygenation and improved debris movement in koi ponds and ornamental water gardens.

Proper aeration plays an essential role in maintaining a healthy pond environment. Dissolved oxygen supports koi and other pond fish, beneficial bacteria, and the overall biological processes responsible for water quality. The Rhino II Replacement Diffuser releases a continuous stream of fine air bubbles that rise through the water column, encouraging vertical circulation and promoting oxygen exchange at the pond surface.

As bubbles rise from the bottom drain, they create an upward current that draws surrounding water toward the diffuser. This circulation helps move suspended debris and settled waste toward the bottom drain, where it can be transported to the pond’s filtration system.

Designed for compatibility with the Rhino II 4-inch aerated bottom drain, this replacement diffuser allows pond owners to restore aeration performance without replacing the entire bottom drain assembly. It is particularly useful when an existing diffuser becomes clogged, damaged, or less effective due to mineral deposits and biological buildup.

The diffuser is intended for use with an appropriately sized external pond air pump, providing steady airflow for continuous aeration. Its replacement design makes it a practical maintenance component for established koi ponds and professionally installed water features.

Whether you’re maintaining a dedicated koi pond, improving water movement, or replacing an aging aeration component, the Rhino II 4″ Drain Replacement Diffuser helps restore the performance of your existing pond aeration system.

Features:

• Direct replacement air diffuser designed for compatible Aquadyne Rhino II 4-inch aerated bottom drains.
• Fine-bubble aeration releases streams of air bubbles to promote oxygen exchange and water circulation.
• Improves dissolved oxygen availability by increasing water movement and gas exchange at the pond surface.
• Enhanced bottom-water circulation helps reduce stagnant areas and encourages more uniform water movement.
• Supports debris transport by creating currents that help move waste toward the bottom drain.
• Ideal for koi ponds where effective aeration and reliable filtration are essential.
• Restores original aeration performance when replacing clogged, damaged, or deteriorating diffuser components.
• Supports beneficial biological processes by helping maintain oxygen availability throughout the pond.
• Useful during warm weather when pond water naturally holds less dissolved oxygen.
• Compatible with external pond air pumps capable of supplying the required airflow at the installation depth.
• Designed for continuous aeration applications in appropriately configured pond systems.
• Convenient replacement solution eliminates the need to replace the complete bottom drain assembly when only the diffuser requires servicing.
• Suitable for ornamental water gardens and professionally installed pond filtration systems using compatible Rhino II drains.
• Supports long-term pond maintenance by helping maintain effective aeration and water movement.

Specifications:

• Brand: Aquadyne / Rhino
• Product name: Rhino II 4″ Drain Replacement Diffuser
• Part number: RH2-A-R
• Product type: Replacement pond bottom drain air diffuser
• Compatible drain: Rhino II 4″ Aerated Bottom Drain
• Compatible drain model: RH2-A
• Diffuser diameter: 12 inches
• Drain outlet size: 4 inches (compatible bottom drain specification)
• Primary function: Pond aeration and water circulation
• Aeration method: Fine-bubble air diffusion
• Air supply: External pond air pump required
• Recommended airflow: Approximately 1.5–3 CFM (40–80 LPM), depending on pond depth and installation
• Application: Submerged pond bottom drain aeration
• Pond compatibility: Freshwater koi ponds and ornamental water gardens
• Installation type: Replacement diffuser for an existing compatible Rhino II bottom drain
• Power requirements: No direct electrical connection; operates using a compatible external air pump
• Complete bottom drain included: No
• Air pump included: No
• Recommended application: Replacement aeration, improved oxygen exchange, and bottom-water circulation in Rhino II-equipped koi ponds

Installation and Maintenance Recommendations:

Before replacing the diffuser, turn off the connected pond air pump and follow the manufacturer’s recommended procedures for accessing the Rhino II bottom drain.

Remove the original diffuser carefully, taking precautions to avoid damaging the existing air connection or bottom drain assembly. Inspect the connection for debris, mineral deposits, and other obstructions before installing the replacement.

Secure the new diffuser according to the manufacturer’s installation instructions, ensuring the air connection is properly seated.

Restart the air pump and observe the bubble distribution. A properly operating diffuser should produce relatively uniform aeration across its surface.

Periodically inspect diffuser performance. Reduced airflow or uneven bubbling may indicate mineral deposits, biological buildup, an obstructed air line, or reduced air pump performance.

Important Compatibility Information:

This product is a replacement diffuser only, not a complete 4-inch pond bottom drain.

It is intended for the Rhino II 4-inch aerated bottom drain. The 4-inch designation refers to the compatible drain’s plumbing connection, not the diameter of the diffuser itself.

A compatible air pump must provide adequate airflow at the actual pond depth. The recommended airflow should be evaluated against the air pump’s operating pressure and the installation requirements.

Recommended application: Restoring fine-bubble aeration, supporting oxygen exchange, and maintaining effective bottom-water circulation in koi ponds equipped with the Aquadyne Rhino II 4-inch Aerated Bottom Drain.
