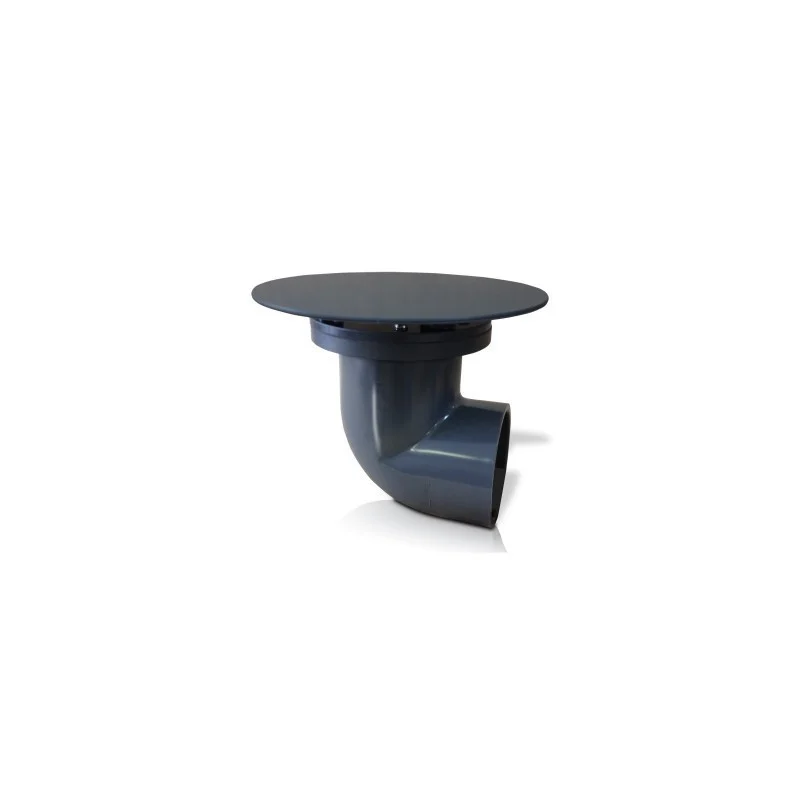

Rhino 90 Degree Bottom Drain

Product details

The Rhino 90 Degree Bottom Drain is a plumbing fitting designed to be installed as a bottom drain in a pond or similar water system, using a 90-degree layout to connect your bottom-drain plumbing to horizontal pipework. Built as a ready-to-install unit, it helps streamline installation by reducing the steps and on-site assembly typically required for bottom-drain setups. The drain’s construction is centered on durability for long-term service, with Sch 80 PVC components and hand-welded joints.

Features:

• Fully constructed of Schedule 80 (Sch 80) PVC for a sturdy, commercially durable build.
• Ready to install onto horizontal plumbing, reducing assembly time.
• Thicker flanges and a liner attachment ring designed to resist flexing, distortion, or cracking.
• Precision machine-fitted attachments for extra strength, designed to avoid the need for gap filling.
• Hand-welded joints for dependable structural welds.
• Full 3" height over the discharge port (Rhino II detail) to provide more material/concrete coverage over the horizontal discharge.
• Includes a commercial air-check valve (1.5") to help prevent water from entering the air line.
• Designed without injection-molded components that can weaken some drain styles.

Specifications:

• Material: Schedule 80 (Sch 80) PVC
• Installation style: Ready to install onto horizontal plumbing (90-degree bottom drain layout)
• Air line protection: Includes a 1.5" commercial air check valve
• Discharge coverage detail: 3" height over the discharge port (Rhino II detail stated by the supplier)
