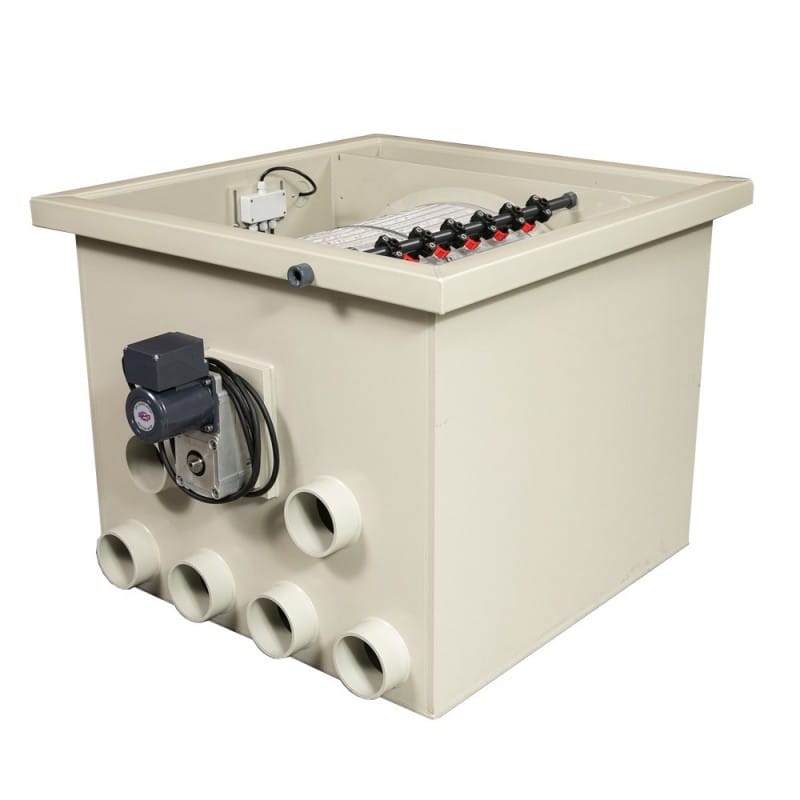

PP-65 Wifi Version RDF – Sea Side Aquatics

Unit comes with external cleaning pump ( required installation )

PP-65 RDF Version 2 – Sea Side Aquatics

This is our newest wifi / digital controller that only with with 2 probe sensor and with other add on options like:

• Wifi ( Included )
• SMS message ( Not Included )
• Temperature ( Not Included )
• Water Level Sensor ( Not Included )
• Water Top Off ( Not Included )
• Force Cleaning ( Included )
• Automatic Waste Tray Wash ( Included )
• and many more features please click on the below link to have access to the pdf files

Wifi Version Instruction

Specifications PP-65

MAX FLOW 17000GPH
Pond Suggested 34000GAL
Standard flow is 65 m3 / h
Gravity / Airlift / Pump fed
Installation height 17 cm

Material:

PP 15 mm housing / PP 20 mm drum
Stainless steel 316/304 / Silicone seal

Specifications:

6 x 110 mm inputs
6 x 110 mm outputs ( 2 extra 110 mm outputs for pump fed )
110 mm waste water drain
Diameter drum 60 x 50 cm
Screen panel 75 micron stainless steel 316
Removable waste water container
Spray bar with removable mounting, high pressure PVC 40 bar Cover
Control box on filter
Turn / flush manual operation
Rinse level adjustable
Turn / rinse time adjustable

All components assembled in modules and therefore quickly interchangeable

Click Here For Additional Information
