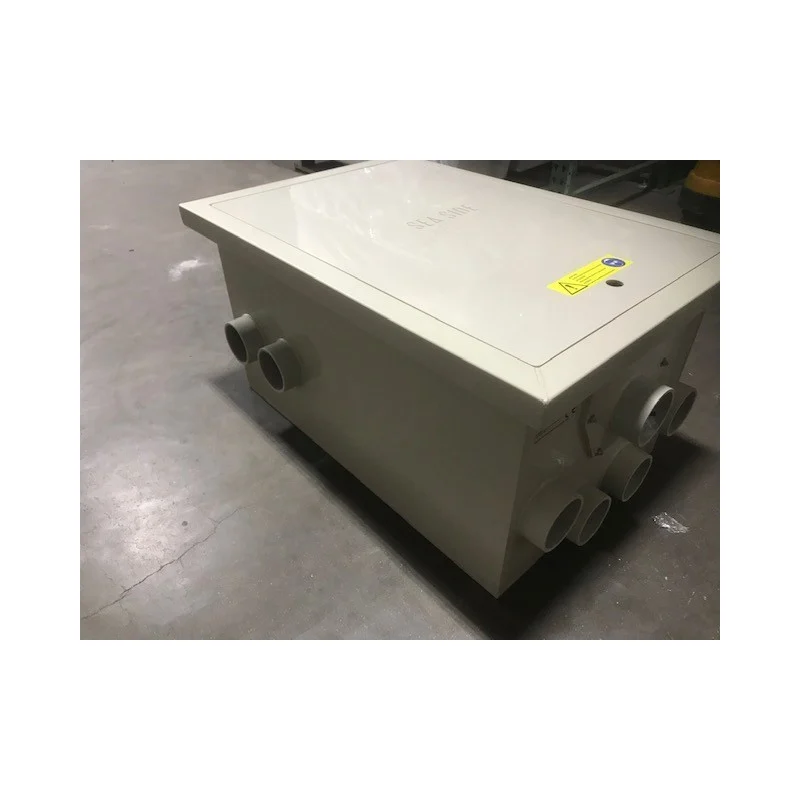

PP-40 Wifi RDF W/ 4 Inlets – Sea Side

Product details

PP-40 Wifi RDF W/ 4 Inlets – Sea Side is a high-flow, external mechanical filtration system designed to perform automated waste collection using a drum/filter screen and built-in rinse/cleaning functions. In practical aquarium or pond use, it helps remove suspended debris by cycling through rinsing and flush routines, with multiple plumbing options (gravity, airlift, or pump fed) to fit different system layouts. WiFi control is included to support convenient monitoring/operation features depending on your setup and connected app/controller configuration. The unit is built around a PP housing and a stainless-steel filtration screen, with modular construction intended to allow quick interchange of components during maintenance.

Features:

• WiFi included for wireless control/monitoring options
• Force cleaning included for automated cleaning cycles
• Manual waste tray wash included for hands-on maintenance support
• Gravity/airlift/pump fed operation for flexible installation
• Adjustable rinse level and adjustable turn/rinse time
• Removable waste water container for easier draining and service
• Modular, pre-assembled components designed for quicker interchange

Specifications:

• Maximum flow: 10,500 GPH
• Standard flow: 40 m3/h
• Suggested pond size: up to 18,000 GAL
• Installation height: 17 cm
• Housing material: PP 15 mm housing / PP 20 mm drum
• Contact materials: Stainless steel 316/304; silicone seal
• Inputs/outputs: 4 x 110 mm inputs; 2 x 110 mm outputs (plus 4 extra 110 mm outputs on the side for pump fed)
• Waste drain: 110 mm waste water drain
• Drum size: 40 x 50 cm
• Screen panel: 120 micron stainless steel 316
• Control features: Control box on filter; turn/flush manual operation; spray bar with removable mounting (high pressure PVC, 40 bar)
• Connections: All components assembled in modules for interchangeable service parts
