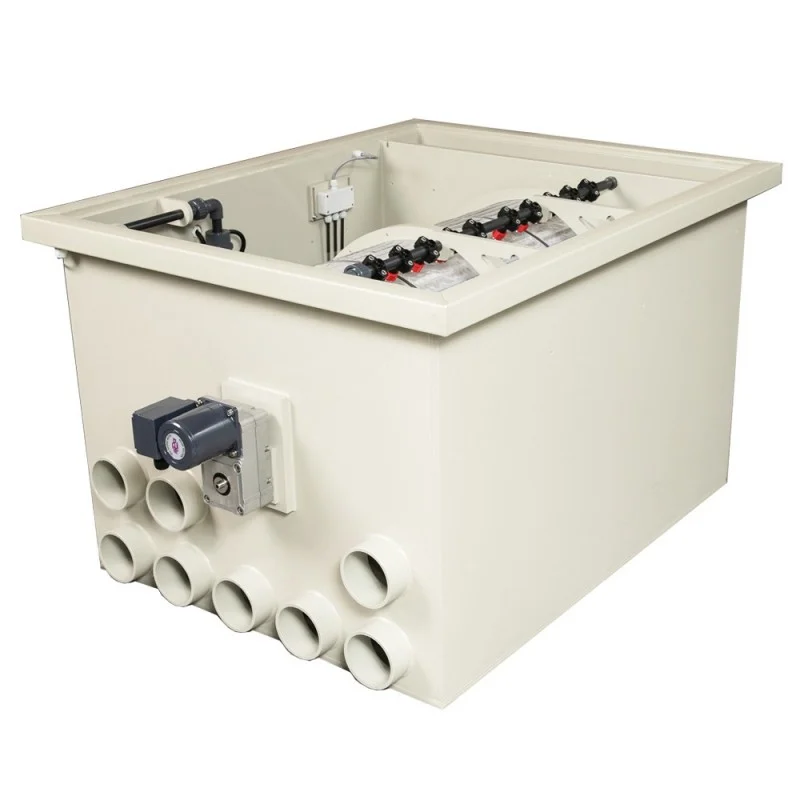

PP-100 RDF Sea Side

Product details

PP-100 RDF Sea Side is an external mechanical filtration unit designed to remove solids from pond or aquarium system water using an RDF (Roto-Driven/rotary-style) self-cleaning approach. It directs flow through a stainless screen panel and provides a controlled rinse/flush cycle to push trapped debris into a waste water drain and removable waste container. This makes it useful for maintaining clearer water in systems where particulate buildup can quickly degrade water quality.

Features:

• External cleaning and rinse/flush operation designed for continuous solids management
• High-pressure spray bar with removable mounting to assist screen washing (PVC, high pressure up to 40 bar cover)
• 75 micron stainless steel 316 screen panel to capture debris while allowing water through
• Adjustable rinsing controls including rinse level, turn/rinse time, and manual turn/flush operation
• Modular assembly with components assembled in modules for quick interchange

Specifications:

• Flow: 26400 GPH
• Pond suggestion: 52800 GAL
• Standard flow: 100 m3/h
• Feeding options: Gravity / Airlift / Pump fed
• Installation height: 17 cm
• Housing & drum materials: PP 15 mm housing / PP 20 mm drum
• Frame/seal materials: Stainless steel 316/304 / Silicone seal
• Inlet ports: 9 x 110 mm inputs
• Outlet ports: 9 x 110 mm outputs (includes 2 extra 110 mm outputs for pump fed)
• Waste drain: 110 mm waste water drain
• Drum size: Diameter 60 x 80 cm
• Screen panel: 75 micron stainless steel 316
• Waste container: Removable waste water container
• Control & operation: Control box on filter; turn/flush manual operation
• Rinse adjustment: Rinse level adjustable; turn/rinse time adjustable
