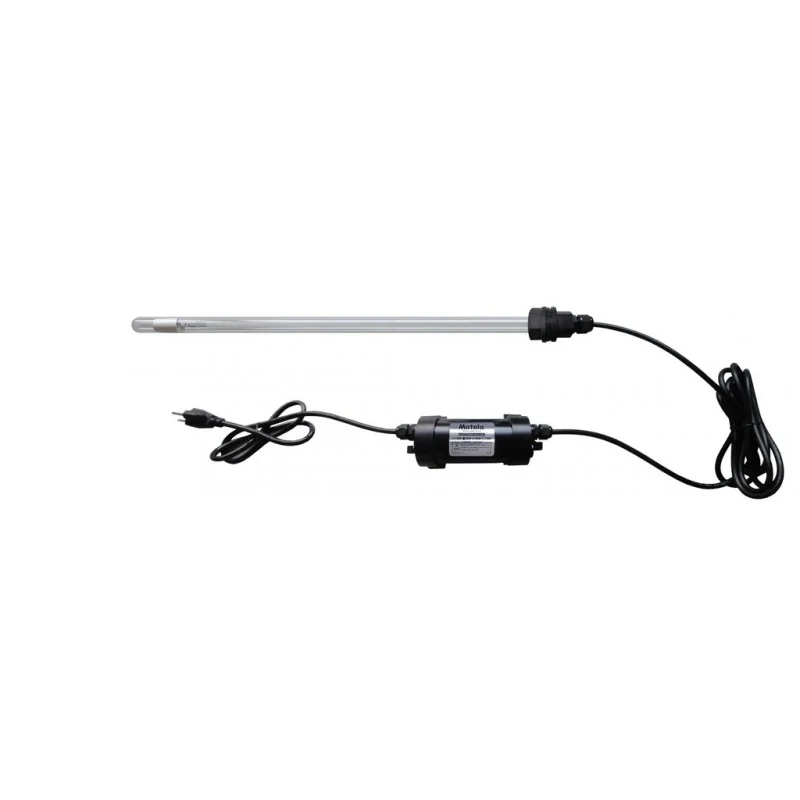

Matala Immersion UV Clarifier

Product details

The Matala Immersion UV Clarifier is an in-filter “drop-in” UV unit designed to be installed directly into an open filter tank to help improve water clarity. Using UV-C light, it works to disinfect circulating water, which can reduce the presence of germs and help keep microbial growth under control. It’s available in multiple wattage models so you can select a unit sized for your system. The Matala design is intended to be straightforward to install and maintain, with a grounded power cord and included components for stable operation.

Features:

• Drop-in UV style designed to sit directly in an open filter tank
• UV-C disinfection to help keep water clearer and reduce germs in circulation
• Built-in electronic pre-selector intended for a constant power supply
• Includes a PHILIPS UV-C lamp
• Grounded power cord for added electrical safety
• Designed for easy installation and maintenance
• Available in multiple wattage sizes (16W, 25W, 40W, 75W) for different system capacities

Specifications:

• Model / Lamp power: IMS-16W / 16 Watt; IMS-25W / 25 Watt; IMS-40W / 40 Watt; IMS-75W / 75 Watt
• Lamp type: Lamp T5
• Voltage: 100-240V, 50/60 Hz (special electric ballast can be used for full range voltage)
• Max. suggested pond size: IMS-16W: 2,200 Gal; IMS-25W: 3,500 Gal; IMS-40W: 5,500 Gal; IMS-75W: 10,500 Gal
• Dimensions (L1): IMS-16W: 12.0 in; IMS-25W: 22.4 in; IMS-40W: 34.1 in; IMS-75W: 34.1 in
• Dimensions (L2): IMS-16W: 14.0 in; IMS-25W: 24.4 in; IMS-40W: 36.1 in; IMS-75W: 36.1 in
• Package dimensions (L x W x H): IMS-16W: 27.2 x 5.9 x 3.8 in; IMS-25W: 38.1 x 5.9 x 3.8 in
• Ship weight: IMS-16W: 3.5 lbs; IMS-25W: 3.8 lbs; IMS-40W: 4.4 lbs; IMS-75W: 4.4 lbs
