LDD-H-4S Driver Board

Product details

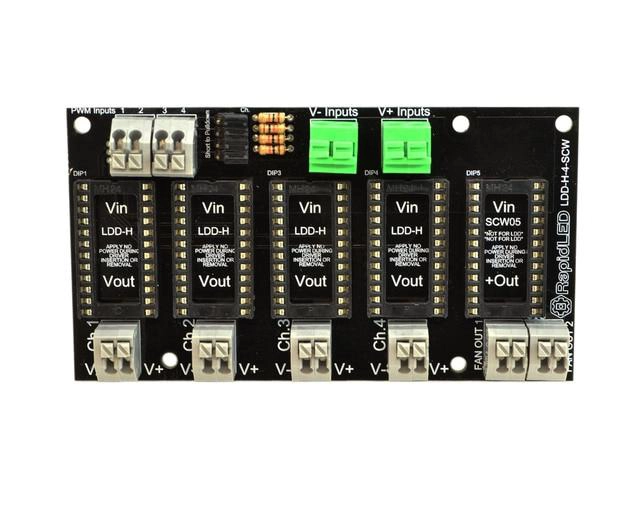

The LDD-H-4S Driver Board is an aquarium LED control accessory designed to help you connect multiple Mean Well LDD series driver units in a cleaner, faster way. Instead of soldering or using wire nuts, this board lets you plug drivers in and route connections using the included terminal layout and DIP sockets. It’s especially useful when you want a multi-channel LED setup where each driver can correspond to a channel for independent dimming and control (based on the drivers you use with the board).

Features:

• Provides a 4-channel layout to support connection of up to four Meanwell LDD series drivers
• Uses attached push terminals to speed up wiring and make setup or modifications more straightforward
• Drivers connect via DIP sockets for quick installation and easier swapping without soldering
• Includes an optional 5th slot for an SCW05X, with two output terminals
• Comes with mounting hardware at no additional charge for convenient installation
• Includes pull-down jumpers that control the default dimming behavior (default ON/OFF without a dimming signal)

Specifications:

• Channels (main layout): 4
• Compatible driver family: Meanwell LDD series drivers
• Driver connection method: DIP sockets
• Connection method for wiring: Attached push terminals
• Optional expansion slot: 5th slot for SCW05X (two output terminals)
• Included in the box: Mounting hardware and pull-down jumpers
