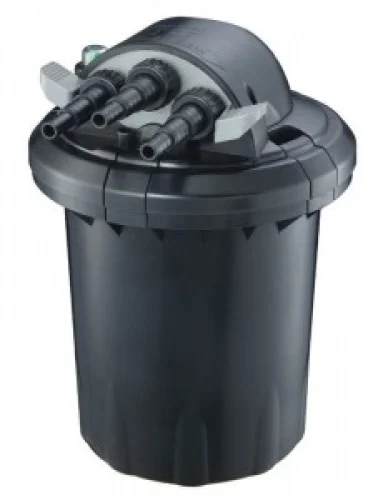

Jebao CF-20 Pressured Pond Filter

Product details

Jebao CF-20 Pressured Pond Filter is a pressurized pond filtration unit designed to help keep a pond or water garden clearer by combining mechanical and biological filtration with an integrated UV (UVC) clarifier. Water is pumped into the filter under pressure, passes through foam filtration media for solids removal and biological breakdown, and then goes through the UV stage before returning to the pond. This makes it practical for setups that benefit from a compact, hideable filter that can also support waterfall/return plumbing.

Features:

• Multi-stage filtration: mechanical foam removal plus biological filtration using bio media, followed by a UV clarifier stage
• Integrated UVC (quartz-glass UV lamp) built into the filter housing as part of the filtration system
• Back-flush facility for easier maintenance by flushing out accumulated debris
• Cleaning indicator that changes color to signal when cleaning/backwashing is needed
• UVC lamp status is visible through a viewing window so you can check operation

Specifications:

• Recommended max pond size: 8000 L pond capacity (about 2110 US gallons)
• UVC power: 9 W
• Filter volume: 20 L (model CF-20)
• Dimensions (L x W x H): 416 x 342 x 519 mm
• Plumbing hose connection size: In/Out: 20/25/32/40 mm
• Supply voltage: 220–240V 50Hz or 120V 60Hz (model listing)
• Operation notes (maintenance/UV checking): Color-coded/visible indicator and a lamp function viewing window are included for checking and maintenance timing
