Exotic Supplement Booster Board

Product details

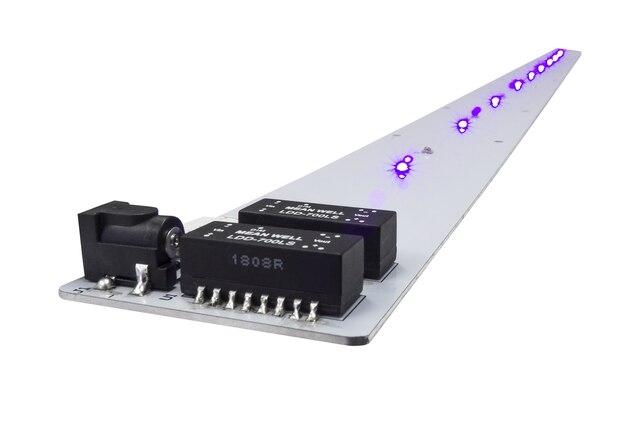

Exotic Supplement Booster Board is a plug-and-play two-channel LED booster board designed to add ultraviolet A (UVA, 390–400 nm) and infrared (840–870 nm) supplementation alongside lighting that normally uses white LEDs. Practically, it rounds out spectra by providing wavelengths not always present on standard white-LED setups, which may help support aquarium growth-related processes such as trichome development on compatible corals. Use the board with a compatible dimming controller for separate control of the two channels; without a controller, both channels will run at full intensity.

Features:

• Two separate LED channels for UVA (390–400 nm) and Infrared (840–870 nm) supplementation
• Designed for plug-and-play use with a constant-voltage DC input; includes solderless power connectivity via a DC barrel connector
• Includes dimming hardware (WAGO connector) for controller-based channel control
• Can be used without a controller (both channels default to 100% intensity)
• Does not require a separate heatsink for mounting, though extra support/rigidity is recommended
• Optional Supplemental Canopy Heatsink and canopy bracket options help with fitment in canopy substrates

Specifications:

• LEDs included: 9 x SemiLED UVA LEDs and 9 x SemiLED Infrared LEDs
• Drivers included: 2 x Mean Well LDD-700LS drivers
• Dimming interface: WAGO connector for dimming (requires a controller such as the Storm for separate channel dimming)
• Power connector: DC barrel connector
• Input voltage (constant voltage): 30–36 VDC
• Power requirement: Minimum 35 W per board
• Heatsink note: Doesn’t require a separate heatsink, though a Supplemental Canopy Heatsink can be used for support/rigidity
