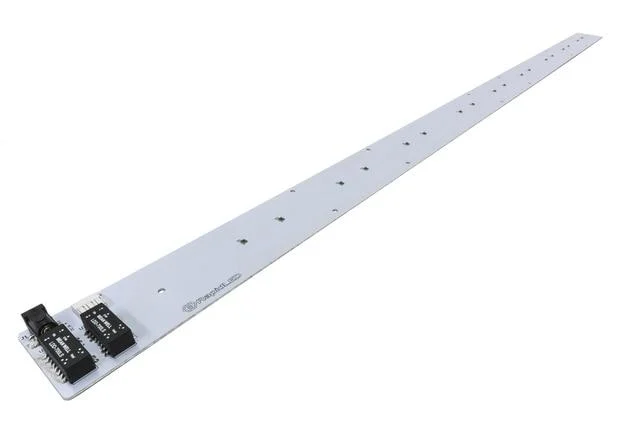

Emerson Effect Booster Board

Product details

The Emerson Effect Booster Board is a plug-and-play two-channel LED board designed to add supplemental photo red and far-red lighting for plant-focused lighting setups that use the Emerson Effect. In practical terms, it’s built to help support plant metabolism/yields and can also be used with a compatible controller to keep far-red lighting on for an additional 15 minutes after lights out for flower initiation. If you run it without a controller, the board is set to run all lights at 100% intensity.

Features:

• Two-channel design to handle photo red and far-red lighting
• Plug and play operation for simplified installation
• Compatible with a controller for timed far-red extension after lights out
• Runs at 100% intensity when used without a controller
• Ships with photo red and far-red LED emitters plus dedicated drivers
• Includes a dimming connection (WAGO connector) for control when used as intended
• Heatsink is not required, but extra support/rigidity is recommended for mounting stability

Specifications:

• LEDs included: 12 x XP-G3 Photo Red and 6 x XP-E2 Far Red
• Drivers included: 2 x Mean Well LDD-700LS
• Dimming/connection: WAGO connector for dimming; DC barrel connector for solderless power
• Power supply requirement: 30–36VDC constant voltage
• Minimum power per board: At least 30W per board
• Canopy heatsink option: Supplemental Canopy Heatsink designed to fit a 4' x 4' Canopy Substrate (select canopy bracket option if using the Canopy Substrate)
• Combination with other boards: Can be combined with Emerson or Exotic Booster Boards using a DC Power Splitter
