Eco 22 WiFi Version RDF – SeaSide

Product details

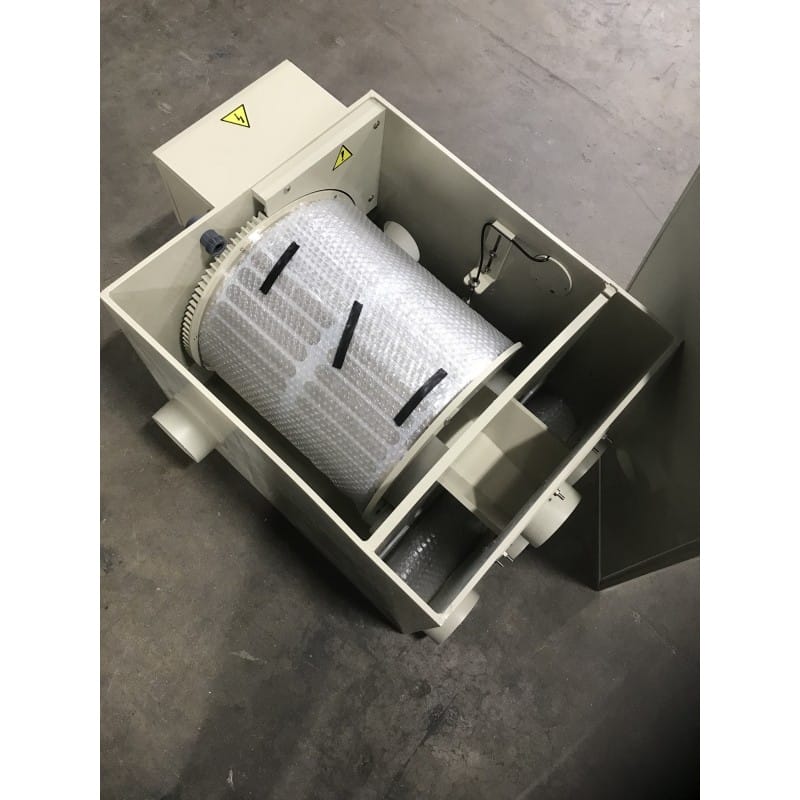

Eco 22 WiFi Version RDF – SeaSide is a waste-handling aquarium filter media system with an integrated digital controller and WiFi connectivity. It’s designed to automate parts of a rinse/flush routine for collected waste, helping keep your system cleaner with less manual intervention. The unit uses a multi-stage approach that includes programmable rinse and flush controls, plus an external cleaning setup that requires installation. With its modular construction, components are intended to be quickly interchangeable for service or configuration changes.

Features:

• WiFi is included for controller connectivity
• Force cleaning is included to support a cleaning routine
• Manual waste tray wash and manual turn/flush operation features are included
• Rinse level and turn/rinse time are adjustable for flexible operation
• Multiple inputs/outputs support installation options such as gravity, airlift, or pump-fed setups
• Removable waste water container and high-pressure spray bar for rinsing
• Modular components are assembled so parts can be swapped quickly

Specifications:

• Max flow: 5800 GPH
• Standard flow: 22 m3 / h
• Suggested pond size: 11500 GAL
• Installation height: 17 cm
• Feed type: Gravity / Airlift / Pump fed
• Housing / drum materials: PP 10 mm housing / PP 15 mm drum
• Contact components: Stainless steel 316/304; silicone seal
• Inputs: 2 x 110 mm
• Outputs: 2 x 110 mm outputs (plus 2 extra 110 mm outputs for pump fed)
• Waste water drain: 110 mm
• Drum size: 40 x 40 cm
• Screen panel: 75 micron stainless steel 316
• Operational controls: Turn/flush manual operation; rinse level adjustable; turn/rinse time adjustable
