Eco 20 RDF w/ Float – Sea Side

Product details

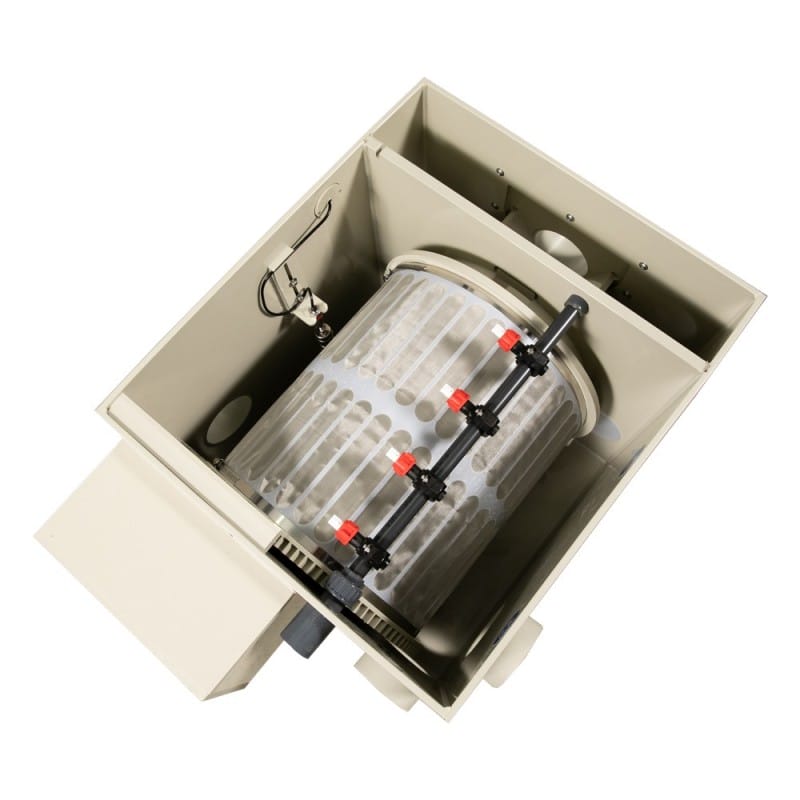

Eco 20 RDF w/ Float – Sea Side is a mechanical aquarium/pond filtration unit designed to remove fine waste using a rotating drum and a controlled rinse/flush cycle. Using an RDF (Roving/Rotary Drum Filter) style process, it helps keep water clearer by trapping particles on a stainless screen and then automatically flushing them to a drain. The included external cleaning up is required installation, making it practical for setups that benefit from reliable particulate removal in a single, modular system.

Features:

• RDF filtration with a high-micron stainless screen panel (120 micron) to capture particulate matter
• Manual turn/rinse operation with adjustable rinse level, and adjustable turn/rinse time
• Removable waste water container for easier maintenance and cleaning
• Gravity/airlift/pump fed operation options, with extra 110 mm outputs for pump-fed configurations
• Modular, assembled components designed for quick interchangeability
• Spray bar with removable mounting designed for high-pressure rinsing (40 bar reference)

Specifications:

• Max flow: 5800 GPH
• Standard flow: 25 m3/h
• Suggested pond size: 11500 GAL
• Installation height: 17 cm
• Housing material: PP 10 mm housing / PP 15 mm drum
• Drum and seals: Stainless steel 316/304; silicone seal
• Inputs: 3 x 110 mm
• Outputs: 2 x 110 mm outputs (2 extra 110 mm outputs for pump fed)
• Waste drain: 110 mm
• Drum size: Diameter 38 x 40 cm
• Screen panel: 120 micron stainless steel 316
• Drive motor: 40 NM drive motor; 2.5 rpm
