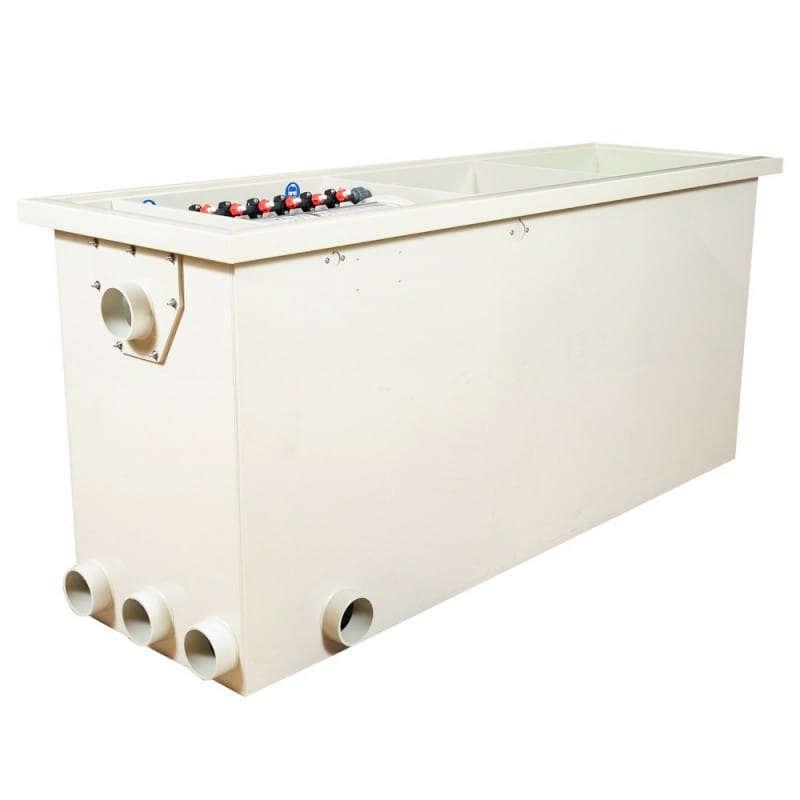

CL35-L RDF + Bio Chambers WIFI Controller – Sea Side Aquatics

Product details

CL35-L RDF + Bio Chambers WIFI Controller – Sea Side Aquatics is a WiFi-enabled, digital control unit designed to automate and manage a filtration system that combines an RDF (rotating drum filter) stage with bio chambers (moving bed). In practical use, it helps run the drum filtering and scheduled cleaning cycles while supporting automatic operation tied to sensors. This makes it useful for keeping solids filtration consistent and for coordinating ongoing filtration performance without manual start/stop routines.

The controller is built to operate with an RDF drum and includes internal components and configurable behavior (such as adjustable cleaning levels and cleaning/turn-flushing timing). A WiFi interface is included, and the system is designed for modular component access for quicker changes of internal modules. Overall, it’s intended to streamline maintenance intervals and improve day-to-day consistency for filtration setups that use a drum filter and moving-bed biological filtration.

Features:

• Built-in WiFi digital controller for network monitoring/control (WiFi included)
• Automatic cleaning with sensor plug-and-play operation, plus manual run/wash operation
• Adjustable cleaning (turn/flushing) time and adjustable cleaning level
• Integrated control panel with multiple plugs to manage the drum filter motor, cleaning function, and pond-pump
• Built-in dry-run protection for the pond pump
• Modular internal components designed for quick change-out

Specifications:

• Maximum flow: 35 m3/h
• Feed type options: Gravity / airlift / pump feed (pump version has 30% less capacity)
• Water running height: 12 cm
• Drum diameter and size: 40 cm x 50 cm
• Waste outlet: 1 x 110 mm
• Drum bypass: 2 x 90 mm
• Mesh: Patented woven 75/120 micron stainless steel mesh
• Cleaning system: Installed cleaning pump rated 5 Bar
• Drive motor: 50 NM drive engine with 4 RPM
• Biological media (moving bed): Moving bed for 125 liter helix (listed twice)
• Material (housing/drum/seals): PP 10/15 mm housing, PP 15 mm drum; RVS 316/304; UV resistant seal
• Air discs (built-in): 2 built-in air disc of 35 cm
• Compliance: CE approved
