CL-35 Wifi Version Combi RDF – Sea Side

Product details

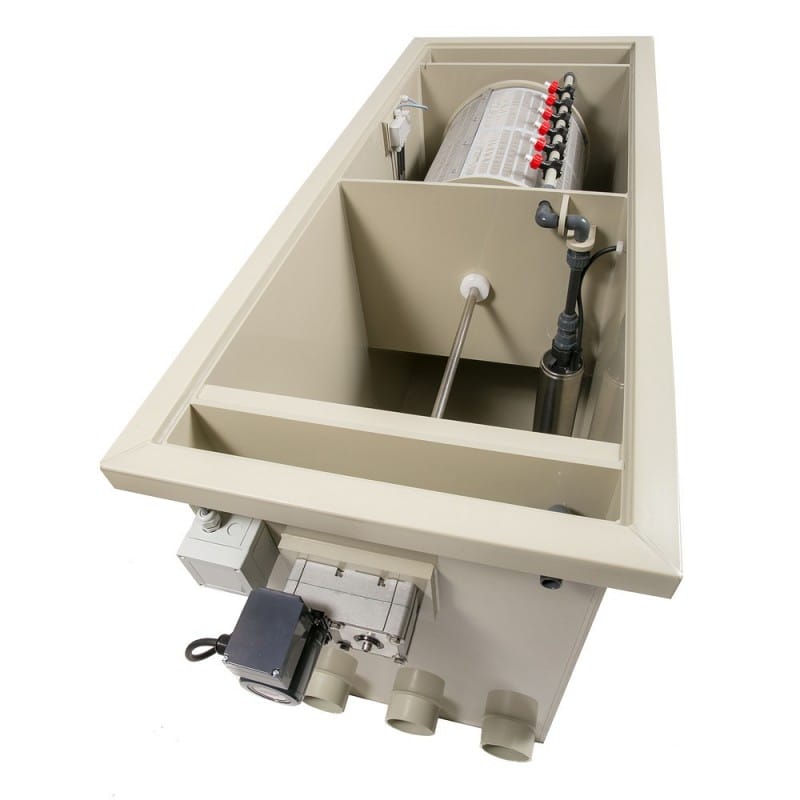

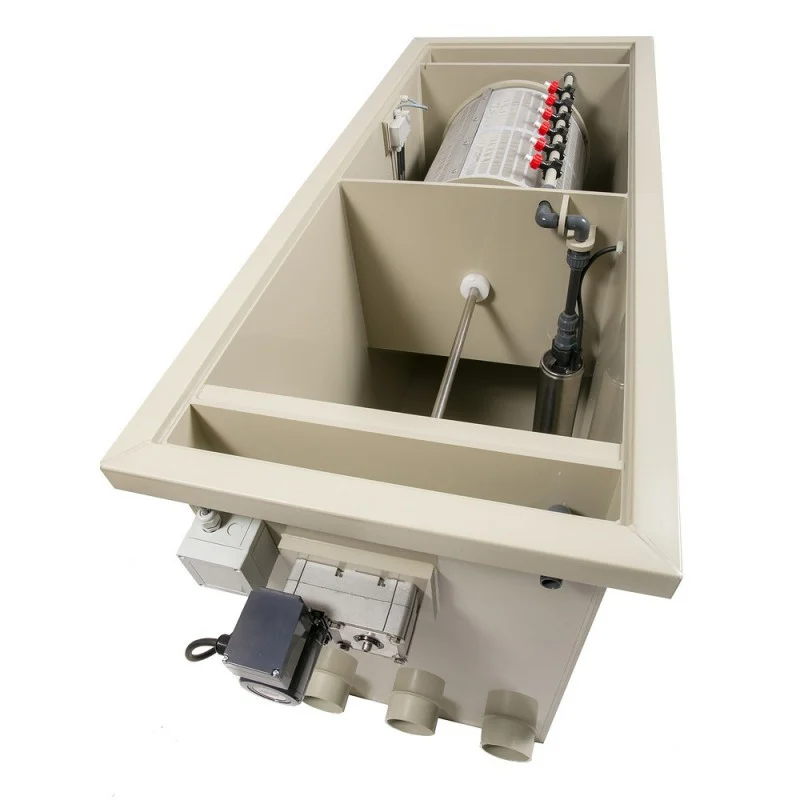

CL-35 Wifi Version Combi RDF – Sea Side is a combined mechanical filtration device designed to run with automated flushing and rinsing cycles, helping keep particulate buildup under control. Built around a digital/WiFi controller, it supports sensor-driven operation with the standard unit using 2 probe inputs, while additional monitoring and control options can be added. In practical aquarium use, it’s intended to manage dirty water routing through a screening stage and a media section, then clear the system by rinsing and draining waste into a removable container, with features such as forced cleaning and automated waste-tray washing included.

Features:

• WiFi capability included for the controller
• Force cleaning included for active clearing when needed
• Automatic waste tray wash included to help maintain the waste system
• Supports gravity, airlift, or pump-fed operation
• Adjustable rinse level and adjustable turn/rinse timing
• Uses a removable waste-water container for easier servicing
• Modules are assembled for quick component interchange

Specifications:

• Max flow: 9250 GPH
• Standard flow: 35 m3/h
• Suggested pond size: 22000 GAL
• Installation height: 14 cm
• Housing / drum: PP 15 mm housing / PP 20 mm drum
• Seals / construction materials: Stainless steel 316/304 and silicone seal
• Controller inputs: 3 x 110 mm inputs
• Controller outputs: 3 x 110 mm outputs (2 extra 110 mm outputs for pump fed) / 110 mm waste-water drain
• Drum size: 40 x 40 cm
• Screen panel: 75 micron stainless steel 316
• Media volume: 150 L
• Air disc: 35 cm (connection: 20/25 mm)
• Key cycle controls: Turn/flush manual operation; turn/rinse time adjustable; rinse level adjustable
