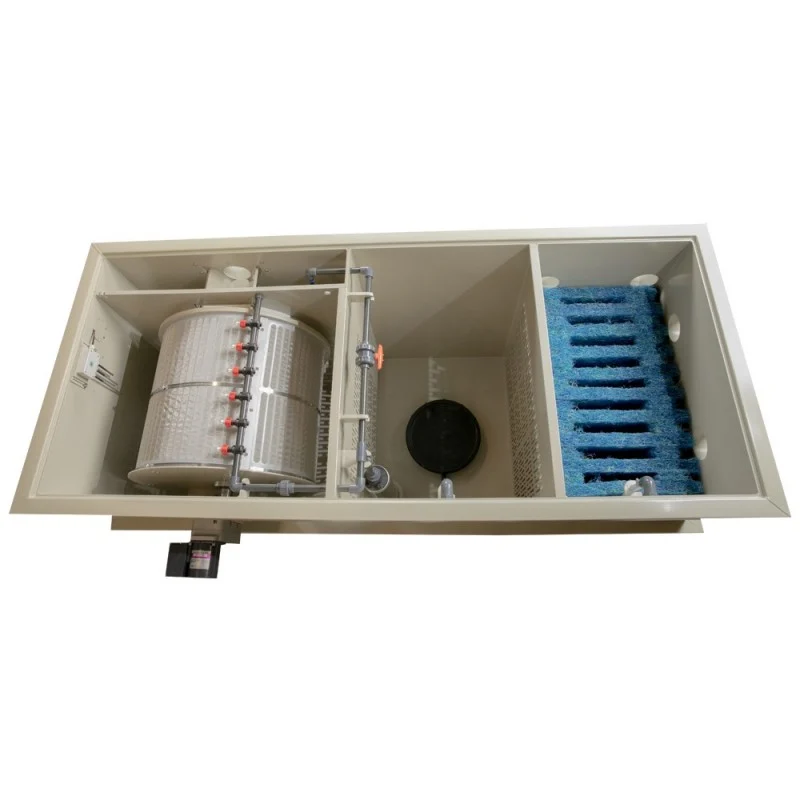

C65M Drum Filter With Moving Bed and Mat – RDF

Product details

C65M Drum Filter With Moving Bed and Mat – RDF is a CE-approved drum filter system designed to mechanically remove waste and support biological filtration using a moving bed media and a mat chamber. In practical use, the drum’s patented mesh surface helps strain debris, while the moving bed (helix) and mat chamber provide additional areas for beneficial bacteria to colonize. The unit is intended for pond/water systems where reliable automatic backwashing/cleaning and modular serviceability are important, helping keep system water clearer with reduced manual intervention.

Features:

• Automatic cleaning “plug and play” operation using a sensor, with adjustable cleaning time and cleaning level
• Manual operation option (run/wash) for control when needed
• Internal cleaning design: includes an internal cleaning pump rated at 5 bar, with internal booster pump support as supplied
• Patented woven stainless-steel mesh drum (75/120 micron) with removable spraybar and removable waste-water gutter for optional waste cleaning
• Biological filtration included: moving bed for 200 liters of helix plus a mat chamber with 250 liters capacity
• Built-in air disc units (2 x 35 cm) to support airflow in the biological compartments
• Modular components built into quickly changeable modules, with detailed instructions included

Specifications:

• Model: C65M
• Dimensions (H x W x D): 82.28 x 41.82 x 38.78 in tall
• Maximum flow: 35 m3/h
• Water running height: 12 cm
• Housing material: PP (10/15 mm) housing; drum PP 15 mm
• Corrosion-resistant components: RVS 316/304 UV-resistant seal
• Drum size and mesh: Diameter 60 cm x 50 cm; patented woven stainless steel mesh (75/120 micron)
• Waste outlet: 1 x 110 mm
• Drum bypass outlets: 2 x 90 mm
• Air discs: 2 built-in air discs, each 35 cm
• Moving bed capacity: 200 liter helix
• Mat chamber capacity: 250 liters
• Installed cleaning pump: 5 Bar
• Drive / speed: 50 NM drive engine with 4 RPM
• Power / inputs and outputs: Standard inputs and outputs according to drawing; changes possible
