C-22 Combi RDF Wifi Unit – Sea Side Aquatics

Product details

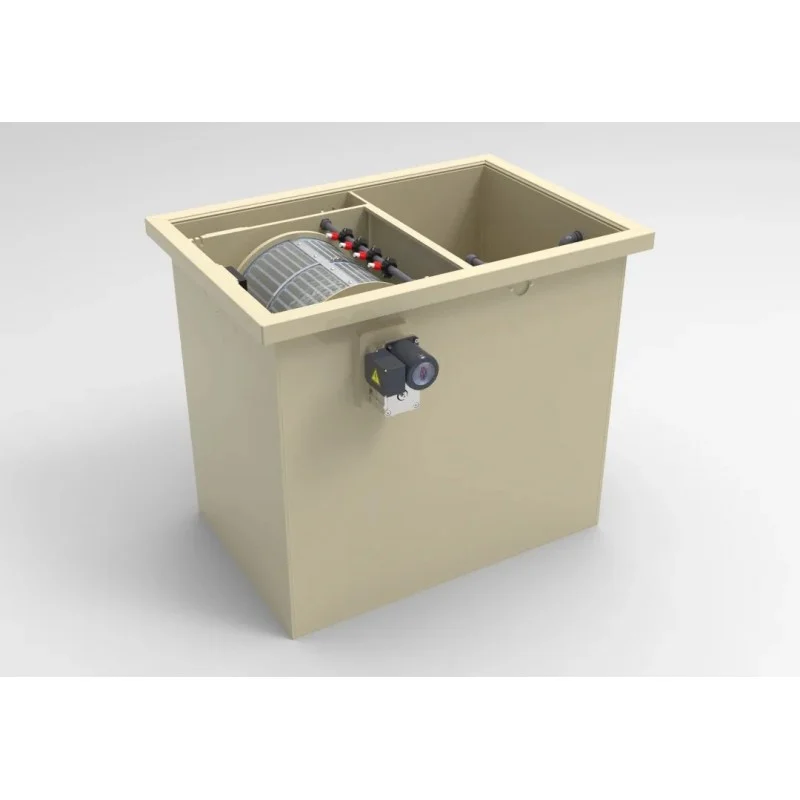

The "C-22 Combi RDF Wifi Unit – Sea Side Aquatics" is a gravity/airlift/pump-fed aquarium filtration unit designed to mechanically remove solid waste using a drum-and-screens setup and a rinse/flush cycle. It is commonly used to improve water clarity and reduce waste buildup in large systems by collecting debris in a removable waste container and rinsing the screen/mounting arrangement as the unit performs turn/flush operations. The included control box supports the unit’s operating modes, and the overall modular build is intended for easier maintenance and component swaps. Use it as a dedicated filtration stage with appropriate plumbing to match the 110 mm inlet/outlet and waste drain connections.

Features:

• Combi RDF design for mechanical solid waste capture with rinse/flush operation
• Works as gravity / airlift / pump fed system (configuration depends on your plumbing and pump setup)
• Removable waste water container for easier debris handling
• 75 micron stainless steel 316 screen panel for fine mechanical filtration
• Adjustable rinse level and adjustable turn/rinse time for practical tuning
• Modular, pre-assembled components with interchangeable sections for servicing

Specifications:

• Maximum flow: 5800 GPH
• Pond/systems suggestion: 15000 GAL
• Standard flow: 22 m3 / h
• Installation height: 17 cm
• Inputs: 2 x 110 mm
• Outputs: 2 x 110 mm (plus 2 extra 110 mm outputs for pump fed)
• Waste drain: 110 mm
• Drum size: 40 x 40 cm
• Screen panel: 75 micron stainless steel 316
• Media capacity: 200 L
• Air disc: 35 cm (connection: 20/25 mm)
• Housing/drum material: PP 15 mm housing / PP 20 mm drum
• Stainless parts & seals: Stainless steel 316/304; silicone seal
• Controls: Control box on filter; turn/flush manual operation
