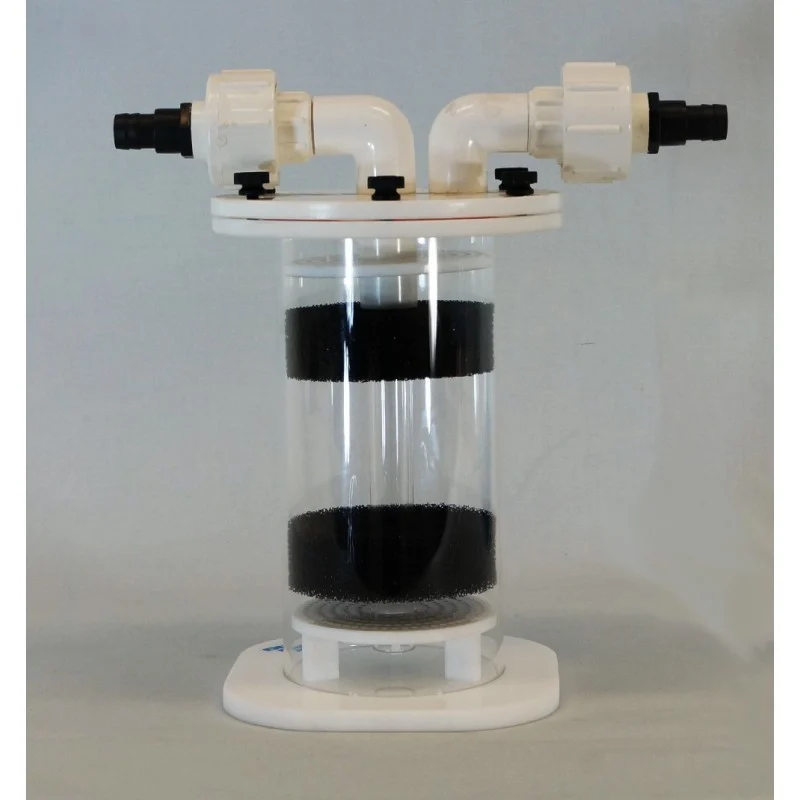

Bubble Magus Media Reactor MF-100

Product details

Bubble Magus Media Reactor MF-100 is a marine media reactor designed to hold and efficiently circulate media (commonly used for biopellet-style filtration) in a controlled, tumbling “reaction chamber” within a sump or filtration system. By pushing tank-supplied water through the reactor and up through the chamber, the MF-100 keeps the media suspended and moving so it can be used more consistently in aquarium filtration. The MF-100 uses standard 5/8" ID tubing connections via 90° barb fittings for straightforward plumbing.

Features:

• Media reactor design helps keep filtration media in a circulating reaction chamber
• Built around a dedicated reaction chamber size for efficient media turnover
• 5/8" 90° barb inlet/outlet fittings are intended for standard 5/8" ID tubing
• Multiple MF-100 sizes are available to match different marine tank volumes
• Compact footprint with a consistent overall width for easier sump/stand installation
• Overall height varies by size to suit different cabinet and sump layouts

Specifications:

• Inlet / Outlet: 5/8" 90° barb fittings (fits standard 5/8" ID tubing)
• MF100S (Small) – Recommended tank size: 100–150 gallons marine
• MF100S (Small) – Overall height: 10.5"
• MF100S (Small) – Reaction chamber height: 8"
• MF100S (Small) – Overall width: 6"
• MF100S (Small) – Reaction chamber (L x W): 8" x 4"
• MF100M (Medium) – Recommended tank size: 250 gallons marine
• MF100M (Medium) – Overall height: 16"
• MF100M (Medium) – Reaction chamber height: 14"
• MF100M (Medium) – Overall width: 6"
• MF100M (Medium) – Reaction chamber (L x W): 14" x 4"
• MF100M (Medium) – Total capacity: 155 cubic inches / 0.68 gallons / 86 fluid ounces / 2.6 litre
• MF100L (Large) – Recommended tank size: 375 gallons marine
• MF100L (Large) – Overall height: 23"
• MF100L (Large) – Reaction chamber height: 21"
• MF100L (Large) – Overall width: 6"
• MF100L (Large) – Reaction chamber (L x W): 21" x 4"
• MF100L (Large) – Total capacity: 230 cubic inches / 1.0 gallons / 127 fluid ounces / 3.8 litre
