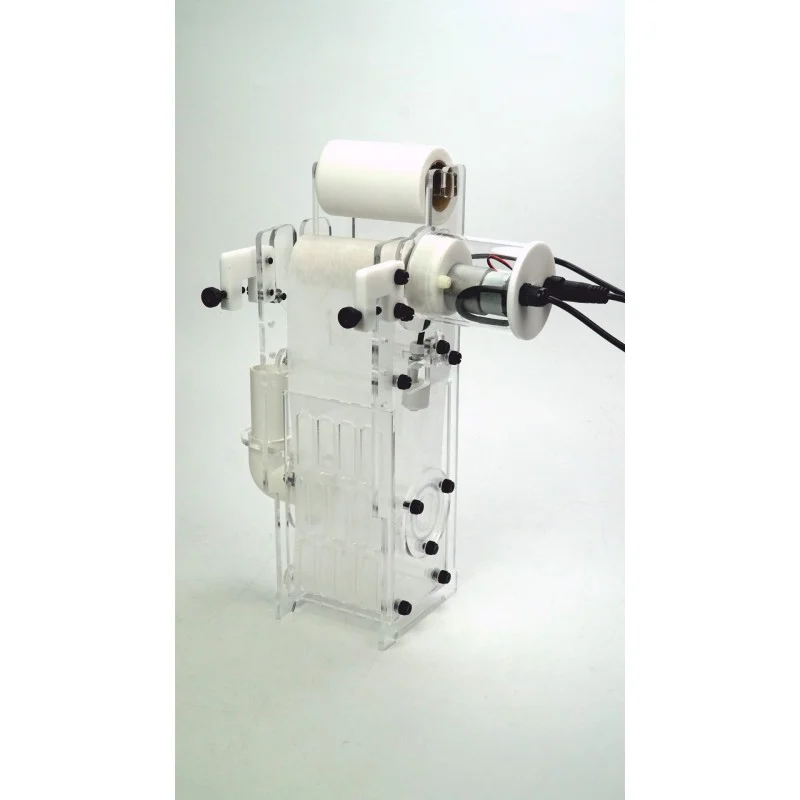

BM Small Roller Filter (ARF-S)

The filter is a high-efficiency water filtration system which effectively removes suspended particles such as detritus, food, organic waste from the water column.

Use in marine aquariums, freshwater aquariums and corals system.

11.3″ long x 5.51″ wide by 15.4″ tall (16″ tall with roll)

submerged base: 5.5″ x 4.5″

Bubble Magus ARF-S Auto Roll Filter

ARF-S Specifications

• 12v DC motor

• 110v Power adapter ULc  DC12v 1amp output

• Water level switch

• Filter roll Non woven 102mm width, 25M length

• 1” I.D inlet pipe, complete with Flex pipe

• 287x140x390mm total dimensions (including motor body)

• Internal sump mounted

The ARF-S removes the need for filter socks. Water is fed into the internal chamber via the aquarium systems drain, and through the filter roll. When the water level rises in the chamber due to filter clogging the water level switch triggers the motor to wind on the filter roll to a new fresh piece. The water level will then drop repeating the process
