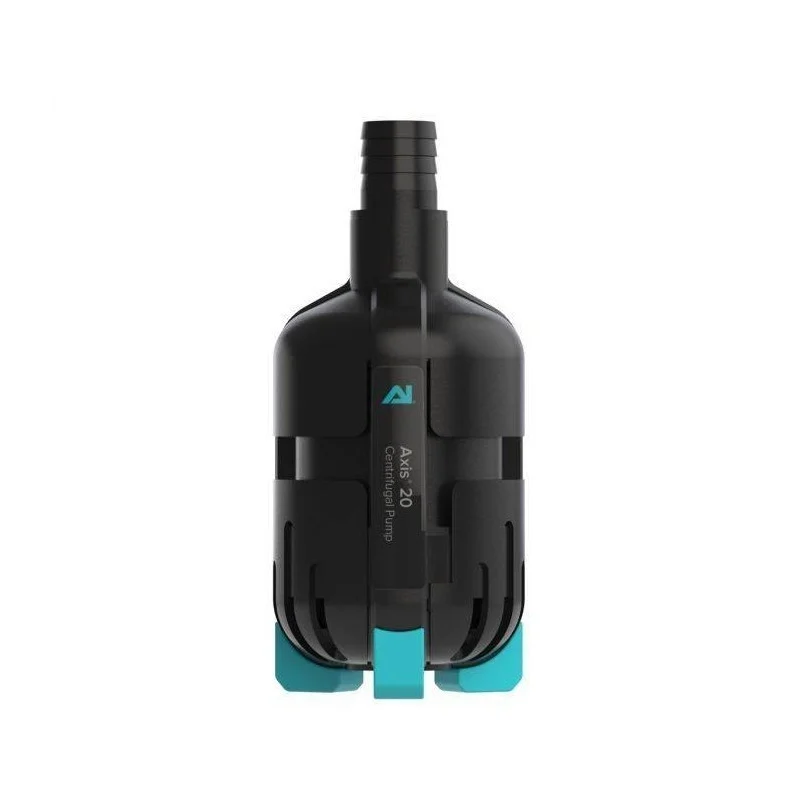

Axis Centrifugal Pump – AquaIllumination

Product details

Axis Centrifugal Pump – AquaIllumination is a smart DC centrifugal return/feed pump designed for aquarium use. It’s built to help you run and program your pump output using compatible AI controls, so you can set schedules, reduce flow for feeding, and calibrate the pump to match conditions in your tank. Depending on the selected Axis model, it’s intended for aquariums up to 15, 40, or 90 gallons.

Features:

• Wireless control with smart app programming using myAI or Mobius on iOS/Android, or control via Apex Fusion using the MXM module
• Three built-in operating modes: Schedule (vary flow over time), Feed (temporarily reduces flow), and Calibrate (set max, min, and neutral flow levels)
• Coordinate Feed/Maintenance: use the control button on one pump to turn all AI pumps on or off
• Prevent back-siphon behavior: with calibration set, powering off can allow the pump to continue running without producing flow to help reduce siphoning when restarting
• DC motor quiet operation for lower-noise pump use
• Output calibration to match pump performance to your aquarium setup

Specifications:

• Model options (select variant): Axis 20 / Axis 40 / Axis 90
• Axis 20 dimensions: 2.125" diameter x 5.5" tall
• Axis 20 max head: ~5 ft (1.5 m)
• Axis 20 flow rate: ~185 GPH (700 lph)
• Axis 20 power consumption: Variable, 12W max
• Axis 20 recommended tank size: Up to 15 gallons
• Axis 20 barbed output nozzle sizes (included): 0.5" (12mm) and 0.625" (16mm)
• Axis 40 dimensions: 2.44" diameter x 6.625" tall
• Axis 40 max head: ~9 ft (2.8 m)
• Axis 40 flow rate: ~400 GPH (1500 lph)
• Axis 40 power consumption: Variable, 20W max
• Axis 40 recommended tank size: Up to 40 gallons
• Axis 40 barbed output nozzle sizes (included): 0.625" (16mm) and 0.75" (20mm)
• Axis 90 dimensions: 2.91" diameter x 7.75" tall
• Axis 90 max head: ~10 ft (3 m)
• Axis 90 flow rate: ~925 GPH (3500 lph)
• Axis 90 power consumption: Variable, 40W max
• Axis 90 recommended tank size: Up to 90 gallons
• Axis 90 barbed output nozzle sizes (included): 0.75" (20mm) and 1.0" (25mm)
