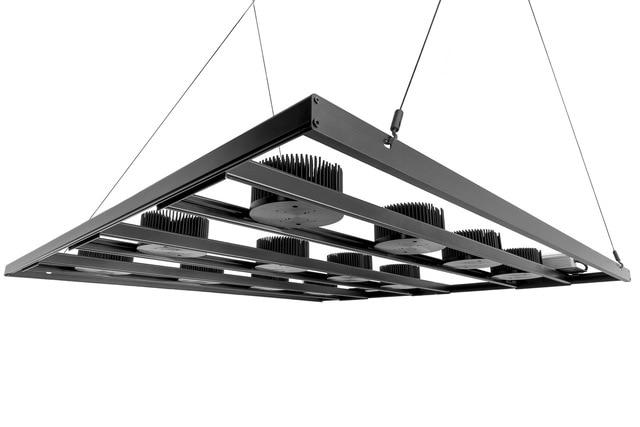

5′ x 5′ Coverage Canopy Substrate

Product details

The "5' x 5' Coverage Canopy Substrate" is a versatile canopy mounting base made for LED setups, designed to cover a 5' x 5' area over your aquarium. It provides a clean way to position LED pin heatsinks using a sliding rail system, allowing practical, adjustable placement along two axes without cutting, drilling, or measuring.

Features:

• Covers a 5' x 5' area using sliding canopy rails
• Slides in smaller 48" canopy rails for two-axis movement of pin heatsinks
• No cutting, drilling, or measuring required for installation
• Included bracket support is sized for up to 4 pin heatsinks per rail set
• Optional driver brackets can mount compatible Mean Well HLG-C series drivers (except the HLG-600) on top of the rails
• Optional rope ratchets (4 total) provide an easy way to lower and raise the substrate with separate mounting points for added stability
• Designed to work with pin heatsinks mounted on the rails (pin heatsinks not included)

Specifications:

• Coverage area: 5' x 5'
• Rail size: 48" canopy rails (smaller rails slide into the substrate)
• Heatsink mounting capacity (per rail set, brackets included): Up to 4 pin heatsinks
• Driver bracket compatibility (optional): Mean Well HLG-C series drivers (except HLG-600)
• Rope ratchets (optional): 4 ratchets total
• Pin heatsinks: Not included
