45463 Loc-Line Acid Resistant Hose Kit for 1/4″ ID System

Product details

<cite index="9-4">The 45463 Loc-Line Acid Resistant Hose Kit for 1/4" ID System contains all the parts to make a basic acid resistant 1/4" hose.</cite> <cite index="5-5">This kit is excellent for rinsing cycles in plating operations.</cite> <cite index="7-4">The polyester composition resists corrosion in acid environments.</cite> <cite index="5-6">This hose is not intended for conveying acids or high pressure applications.</cite>

Features:

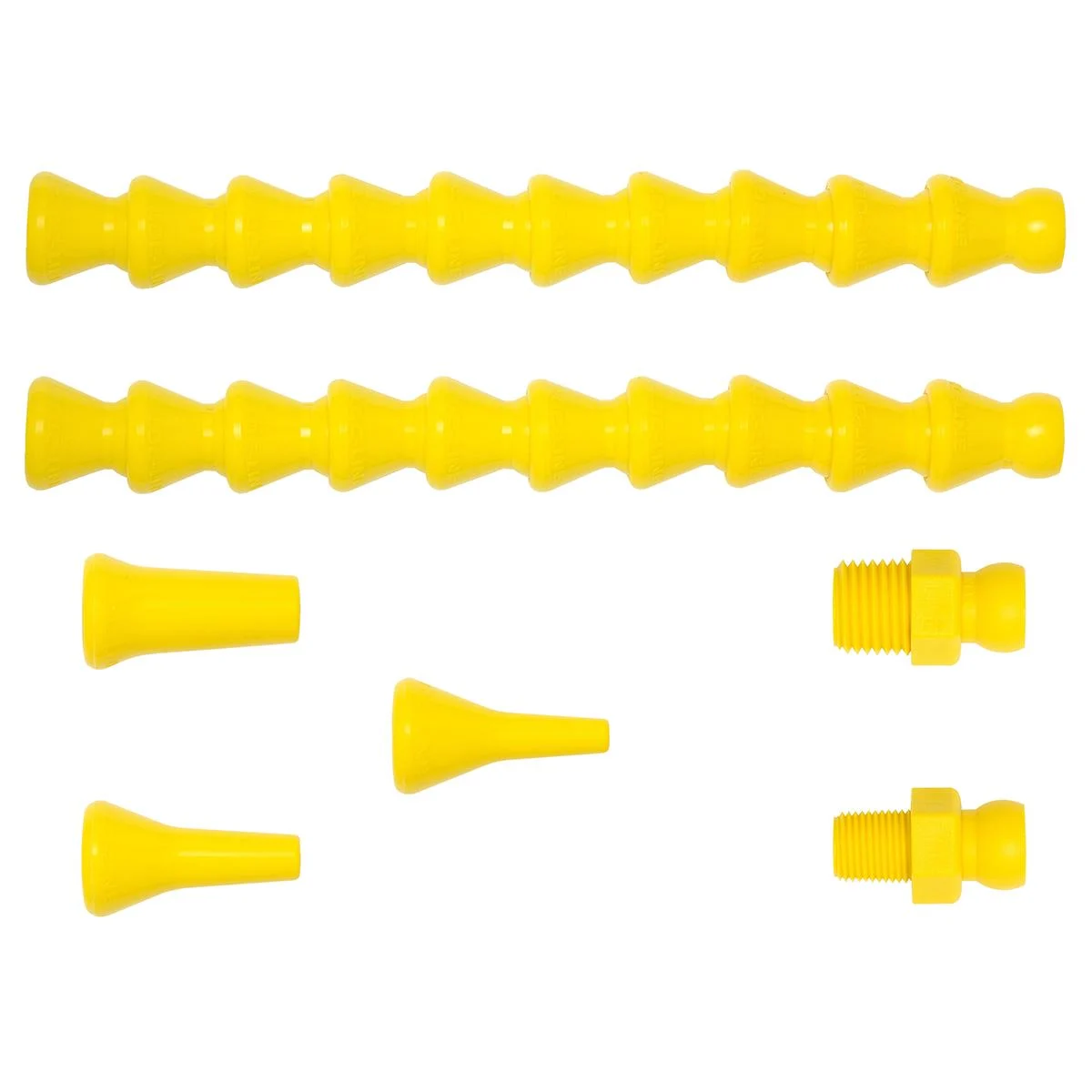

• <cite index="9-5">Kit includes 1 piece 1/8 NPT connector, 1 piece 1/4" NPT connector, 2 pieces 1/4" segments 5-1/2" long each, and three round nozzles (1/16", 1/8", and 1/4" diameter).</cite>
• <cite index="13-4">The unique ball and socket design is fully hand adjustable in both position and length.</cite>
• <cite index="13-5">Bending doesn't decrease the inside diameter and it won't kink or fatigue like copper tubing.</cite>
• <cite index="8-7,8-8">The system can be extended using additional segments and modified with Y's, elbows, and nozzles to change shape and flow pattern.</cite>
• <cite index="4-10">Maximum pressure rating is 55 psi and maximum flow rate is 250 gallons per hour.</cite>
• <cite index="4-10">Maximum operating temperature is 170 degrees Fahrenheit.</cite>

Specifications:

• Material: <cite index="7-4">Acid-resistant polyester</cite>
• Color: <cite index="5-2">Yellow</cite>
• Hose Inside Diameter: <cite index="4-8,4-10">1/4 inch</cite>
• Hose Segment Length: <cite index="4-5">5 1/2 inches each, includes 2 segments</cite>
• Maximum Pressure: <cite index="4-10">55 psi</cite>
• Maximum Flow Rate: <cite index="4-10">250 gallons per hour</cite>
• Maximum Operating Temperature: <cite index="4-10">170°F</cite>
• Connector Types: <cite index="4-10">NPT (National Pipe Thread)</cite>
