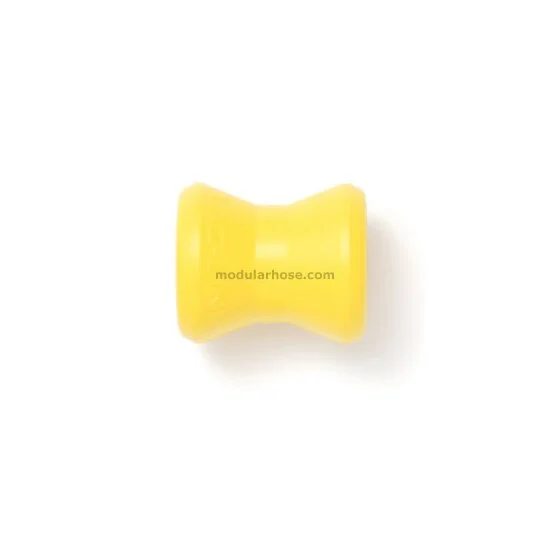

45409 Loc-Line Acid Resistant Double Socket for 1/4″ ID System, pack of 4

Product details

<cite index="8-1,8-2">The 45409 Loc-Line Acid Resistant Double Socket for 1/4" ID System, pack of 4, reverses the direction of the ball and socket connection to allow sockets on both ends of the hose for use with fixed mounts or NPT fittings</cite>. <cite index="5-1">Made of yellow polyester material</cite>, this connector is <cite index="1-6">acid-resistant due to its polyester composition</cite>, making it suitable for environments where corrosive exposure is a concern.

Features:

• <cite index="8-1,8-2">Allows reversal of ball and socket direction to enable dual-end socket configuration</cite>
• <cite index="5-1">Constructed from polyester with yellow finish</cite>
• <cite index="5-1">Compatible with acids under 150°F, alcohols, aromatic solvents, gasoline, grease, hydrocarbons, oils, and salt solutions</cite>
• <cite index="4-2,4-3">Part of the 1/4" ID Loc-Line system featuring endless combination possibilities with sockets, fittings, reducers, valves, nozzles, and adapters</cite>
• <cite index="4-8">Operates safely at line pressure of 30-50 PSI with flow rate to 250 gallons per hour</cite>
• <cite index="5-1">Maximum operating temperature of 170°F</cite>
• <cite index="1-7">Not intended for conveying acids or high-pressure applications</cite>

Specifications:

• Material: Polyester
• Color: Yellow
• Hose ID Size: 1/4"
• Configuration: Double socket adapter
• Quantity per Pack: 4
• Maximum Operating Temperature: 170°F
• Recommended Line Pressure: 50 PSI (with element clamps)
• Flow Rate: 250 gallons per hour
