40413 Loc-Line Sample Kit for 1/4″ ID System

Product details

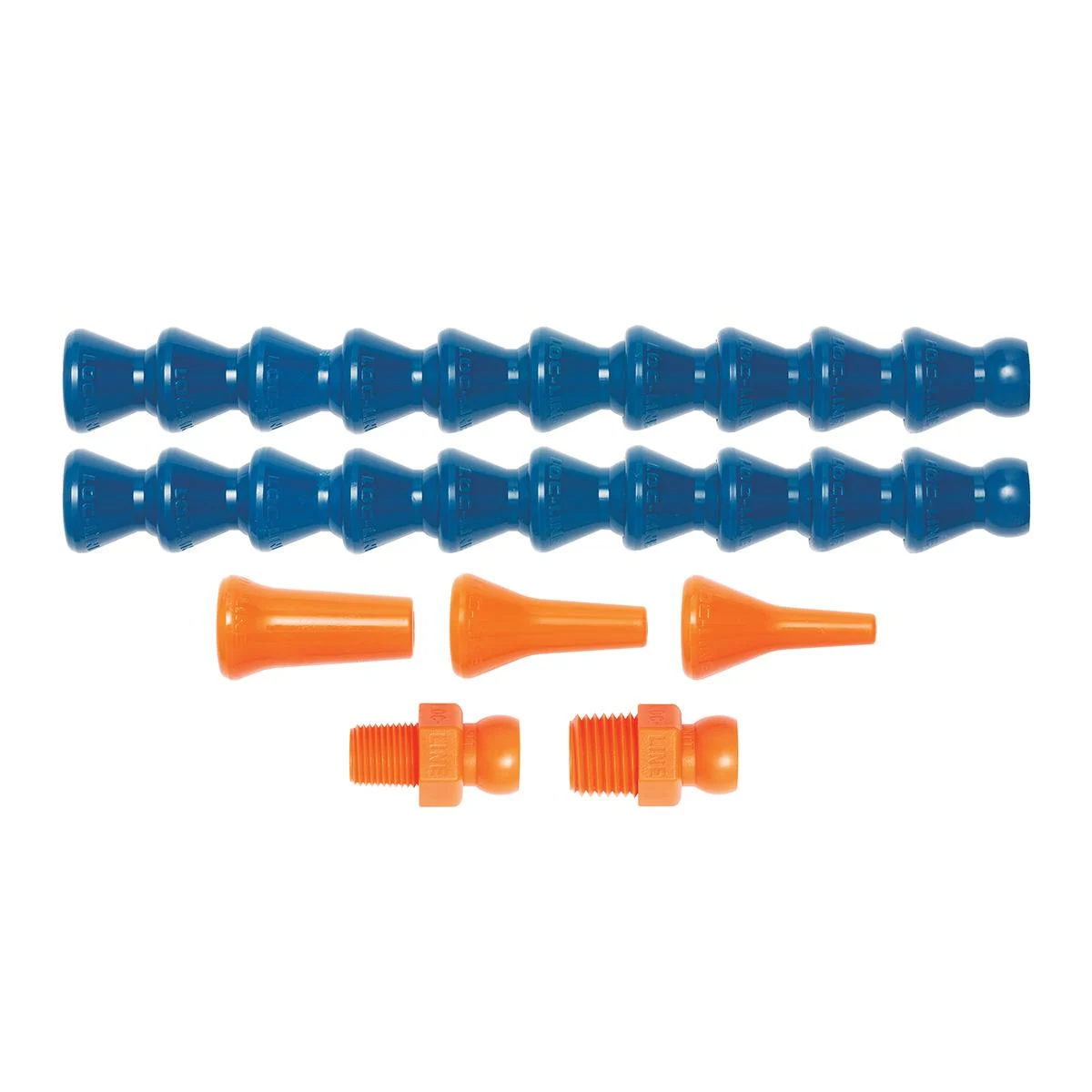

<cite index="26-2,26-3">The 40413 Loc-Line Sample Kit for 1/4" ID System is an introductory modular hose assembly kit that includes two 5¾" hose segments, three round nozzles in 1/16", 1/8", and 1/4" sizes, and two male NPT connectors (1/8" and 1/4")</cite>. <cite index="19-3">Built with a unique ball-and-socket design, Loc-Line systems provide fully adjustable positioning that stays in place under vibration and high flow conditions</cite>, allowing you to direct fluid or air exactly where needed without constant readjustment.

Features:

• <cite index="9-5,9-6">Fully hand-adjustable in both position and length, and will stay in position without any springback</cite>
• <cite index="1-2">Constructed from durable Acetal material, providing robust performance</cite>
• <cite index="15-4">Can be extended using additional segments and can accept male, female or inline valves for flow control</cite>
• <cite index="1-5,1-6">Compatible with various lubricants including acetone, alcohol, gasoline, oils, and sodium hydroxide, with 1/4 inch nozzle connection diameter and NPT thread types</cite>
• <cite index="9-8,9-9">Electrically non-conductive, making it ideal for use as an EDM flushing hose</cite>

Specifications:

• System Size: <cite index="1-1">1/4 inch Loc-Line Systems</cite>
• Hose Inside Diameter: <cite index="6-10,6-11">1/4"</cite>
• Hose Segments Included: <cite index="6-11">Two 5½" long segments</cite>
• Nozzles Included: <cite index="6-19,6-20,6-21">Three nozzles: 1/16", 1/8", and 1/4" diameter round nozzles</cite>
• Connectors Included: <cite index="6-11">1/4" NPT Connector and 1/8" NPT Connector</cite>
• Material: <cite index="1-2">Acetal Copolymer</cite>
• Maximum Pressure: <cite index="6-12,6-13">55 psi</cite>
• Maximum Flow Rate: <cite index="6-11,6-12">250 GPH</cite>
• Maximum Operating Temperature: <cite index="6-14,6-15">170°F</cite>
• Country of Origin: <cite index="6-1,21-8">USA</cite>
