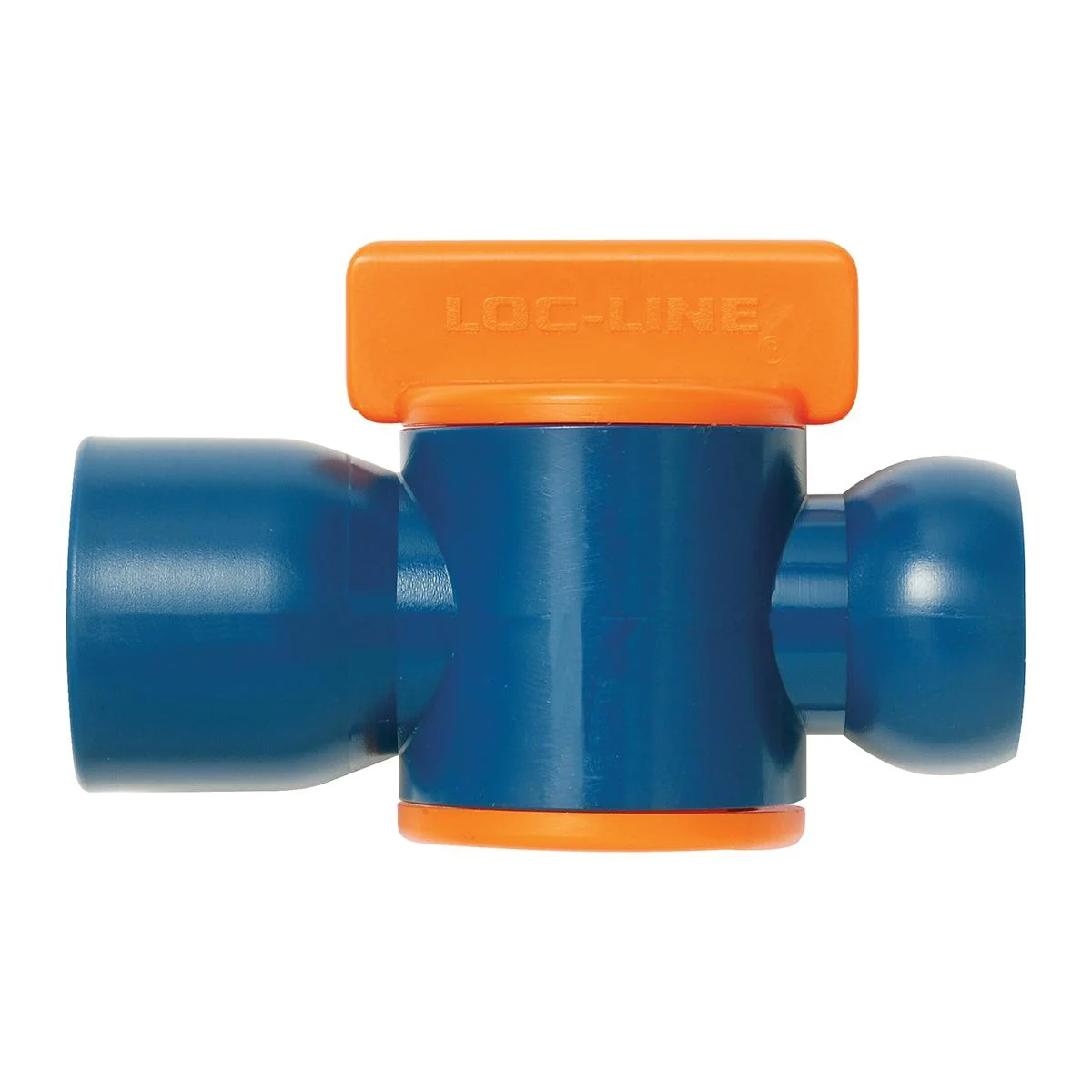

32093 Loc-Line Female NPT Valve for 1/2″ ID System, pack of 2

Product details

The 32093 Loc-Line Female NPT Valve for 1/2" ID System, pack of 2 is a shutoff valve designed to regulate coolant and air flow in Loc-Line modular hose systems. Each valve features a 1/2-inch female NPT threaded connection that attaches to male pipe-threaded supply lines, making it suitable for machine tools, EDM equipment, and pneumatic applications. The valve operates with a simple quarter-turn handle to open or close fluid flow.

Features:

• Acetal copolymer body with nitrile (Buna-N) stem seal for corrosion and moisture resistance
• Rated for 100 PSI maximum working pressure when used as an NPT male/female valve connection
• Operates with a 1/4-turn shutoff mechanism for quick flow control
• Hand-adjustable and compact design allows placement anywhere on the hose system
• Compatible with acetone, alcohol, greases, oils, dish detergents, gasoline, lacquer solvents, and sodium hydroxide
• Blue and orange color coding for easy identification

Specifications:

• Hose Inside Diameter: 1/2 inch
• Connection Type: Female NPT (National Pipe Thread)
• Maximum Working Pressure: 100 PSI
• Maximum Operating Temperature: 170°F
• Body Material: Acetal Copolymer
• Stem Seal Material: Nitrile (Buna-N)
• Quantity per Pack: 2 valves
• Thread Size: 1/2 inch NPT
