2′ x 2′ Coverage Canopy Substrate

Product details

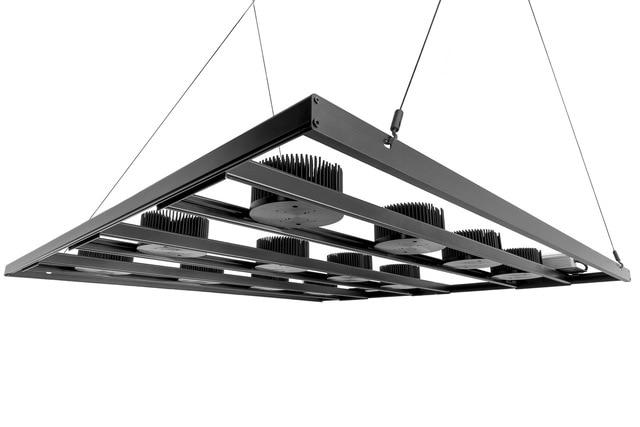

The "2' x 2' Coverage Canopy Substrate" is a canopy component designed for mounting DII LED setups over a 2' x 2' footprint. It uses sliding canopy rails so you can position your LED pin heatsinks with movement along two axes, helping you align lighting coverage without cutting, drilling, or measuring. This substrate is also built to integrate with optional hardware for driver mounting and for easy height adjustments during setup.

Features:

• Covers a 2' x 2' area by sliding in smaller 22" canopy rails
• Provides two-axis movement for positioning your pin heatsinks on the canopy substrate
• Includes brackets for mounting up to 4 pin heatsinks (pin heatsinks not included)
• Designed to mount without cutting, drilling, or measuring
• Optional driver brackets can mount compatible Mean Well HLG-C series drivers on top of the rails (except the HLG-600)
• Optional rope ratchets (4 total) allow lowering and raising the substrate using separate mounting points for stability

Specifications:

• Coverage area: 2' x 2'
• Rail size: 22" canopy rails
• Heatsink mounting capacity (brackets included): Up to 4 pin heatsinks
• Compatible drivers (with optional driver brackets): Mean Well HLG-C series (except HLG-600)
• Rope ratchets (optional): 4 ratchets total
