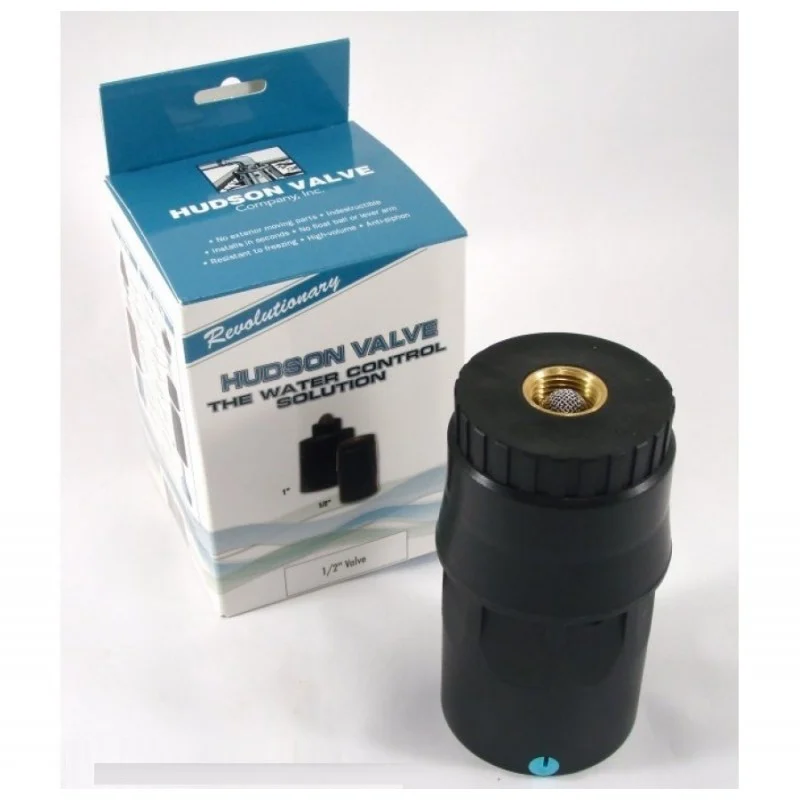

1/2″ Hudson Fill Valve Gravity / Pressurized Flow

Product details

The 1/2" Hudson Fill Valve Gravity / Pressurized Flow is an automatic fluid-control valve designed to help maintain water or fluid levels without an external lever arm or float ball. It’s used to replace traditional float-ball valves in setups such as aquarium top-off and other tanks where a steady fill is needed, including livestock tanks and evaporative or holding applications. As the fluid level rises, the internal float action closes the diaphragm chamber to stop incoming flow; when the level drops, the diaphragm escape opens to allow the tank to refill. This valve is built for durability and is resistant to freezing, making it practical for systems exposed to temperature changes.

Features:

• Automatic fill control that responds to fluid level rise and drop via a float-driven diaphragm chamber
• No lever arm and no float ball or external moving parts
• Rust-resistant and designed with durable internal materials (ABS plastic, EPDM rubber, stainless steel)
• Operates in a wide temperature range, with resistance to freezing damage
• Designed for both gravity and pressurized flow applications (as indicated by the product name and valve function)
• Includes an anti-siphon design to help reduce backflow risk in filling uses

Specifications:

• Max fluid temperature: 175° F
