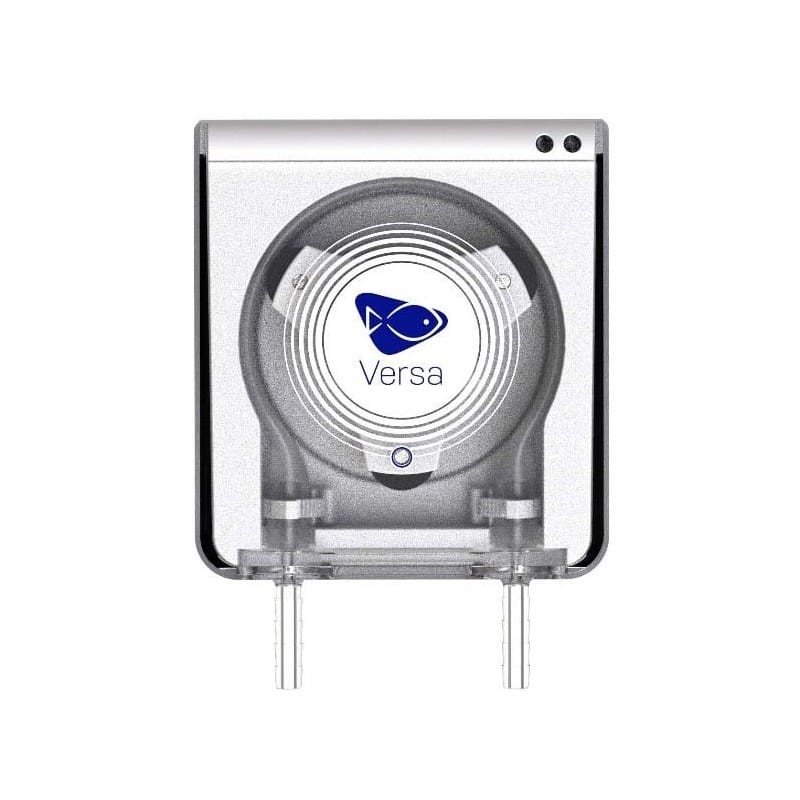

Versa Dosing Pump VX-1 (Single Head) – Ecotech Marine

Product details

Versa Dosing Pump VX-1 (Single Head) – Ecotech Marine is a precision peristaltic dosing pump designed for aquarium automation. In practical setups, it can be used for small-volume chemical dosing, auto top off (ATO), and liquid handling tasks such as automatic water changes, depending on your plumbing and the liquid’s viscosity. This listing is for a single VX-1 pump and power supply, and it includes a mounting triangle so the pump can be secured inside a cabinet or similar stand configuration. Control is handled through EcoTech’s Mobius app over Bluetooth, which supports calibration, scheduling, and multi-mode operation.

Features:

• Peristaltic dosing with a DC stepper motor and planetary gear drive for consistent, reliable pumping
• Extremely wide dosing range suitable for both very small and larger liquid volumes
• BLE/Bluetooth onboard, with configuration and programming via the Mobius control app
• Supports flexible operation including continuous dosing and multiple discrete dosing points (per Mobius programming)
• Programmable dosing modes (Automated, Calculated, or Manual) and scene/routine integration
• Safeguards against over-dosing and user error, plus prime/manual dosing via the base station button (where applicable)
• Modular system design, with compatibility using EcoTech base stations for single-pump or multi-pump setups

Specifications:

• Min dosing volume: .5 µl/min
• Max dosing volume: 300 ml/min
• Accuracy: ±0.2 ml for quantities of 1 ml or less; ±1% for quantities of 1–300 ml
• Input voltage: 110–220v
• Vertical head pressure: 18+ ft (6 m)
• Connector options: ¼” stem push-to-connect (accessory); ¼” female push-to-connect (accessory); ¼” barb for soft-wall tubing
• Tubing: ¼” OD polyethylene-style tubing for push-to-connect fittings, or ¼” OD soft-wall tubing for barb fitting
• Footprint (without connector): 3.45” x 3.15” x 2.34”
• Footprint (with barb connector): 4.231” x 3.15” x 2.34”
• Mobius compatibility: Controllable exclusively with the Mobius app; not backwards compatible with EcoSmart Live
