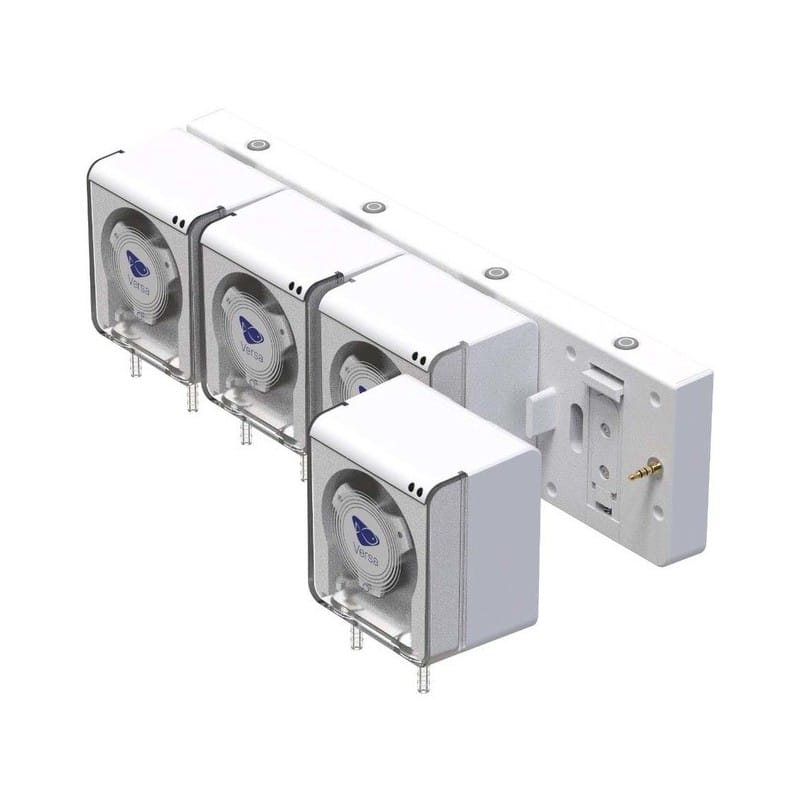

Versa 4 Dosing Pump Set W/ base – Ecotech Marine

Product details

Versa 4 Dosing Pump Set W/ base – Ecotech Marine is a peristaltic dosing pump kit designed for precise liquid delivery in reef and aquarium systems. Each Versa pump can be used for dosing, auto top off (ATO), and water change automation, making it a flexible option when you want one controllable pump platform for multiple tasks. The system uses a DC stepper motor with a planetary drive mechanism for consistent, accurate pumping, and it connects to EcoTech’s Mobius app via Bluetooth for calibration, programming, and scheduling from a phone or tablet.

Features:

• Peristaltic dosing with a stepper motor and planetary gear drive for precision and longevity
• Wide throughput range for small-volume dosing through larger-volume applications
• Mobius (Bluetooth) control for calibration, programming, and scheduling from a mobile device
• Supports automated, calculated, and manual dosing modes, including continuous dosing over time
• Up to 30 discreet dosing points and dosing integration with Mobius scenes/routines (e.g., feed mode)
• Base station provides a 60V power rail for connected pumps and includes tactile buttons for manual priming/dosing
• Built-in safeguards help reduce over-dosing and user error
• Modular design and easy maintenance for long-term use

Specifications:

• Pack contents: 4 Versa pumps with Base Station and Base Station power supply
• Base station power architecture: Base Station serves as a 60V power rail for all pumps
• Min dosing volume: .5 µL/min
• Max dosing volume: 300 mL/min
• Accuracy: ±0.2 mL for quantities of 1 mL or less; ±1% for quantities of 1–300 mL (advertised up to 2%)
• Input voltage: 110–220V
• Vertical head pressure: 18+ ft (6 m)
• Connector options: ¼” stem (push-to-connect); ¼” female push-to-connect; ¼” barb (soft-wall tubing)
• Tubing: ¼” OD polyethylene-style tubing for push-to-connect fittings; ¼” OD soft-wall tubing for barb fitting
• Footprint (Versa): 3.45” x 3.15” x 2.34” (without connector)
• Footprint (Base station): 12.80” x 3.52” x 1.51” (no pumps); 12.80” x 4.25” x 3.21” (4 pumps with barbs)
• Warranty: 1 year parts and labor (EcoTech)
