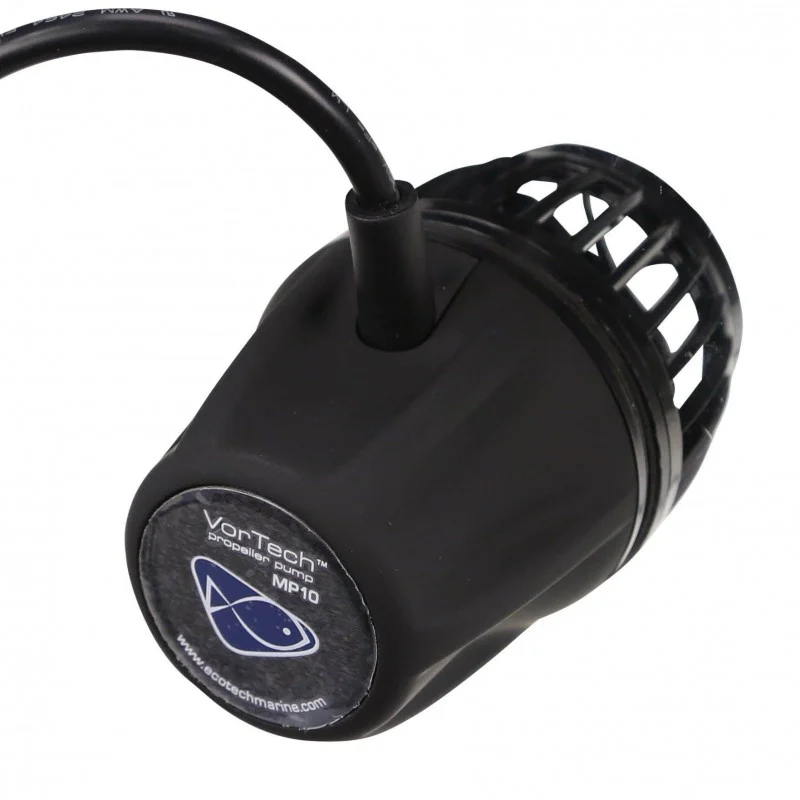

Ecotech Marine Vortech Quiet Drive

Product details

Ecotech Marine Vortech Quiet Drive is a Vortech Driver upgrade designed to run EcoTech Marine Vortech pumps with quieter operation and added control options. It’s used to create aquarium water movement, and it can communicate with compatible EcoSmart controllers (including ReefLink for EcoSmart Live) to help automate flow behaviors. The QuietDrive is listed as included with VorTech MP10, MP40 and MP60 drivers, and it may also be available as an upgrade for existing WWD and EcoSmart drivers.

Features:

• QuietDrive is built as an upgraded version of the VorTech Driver
• Includes multiple continuous operational modes (6+ available)
• Wave Auto Tune, Feed Mode, and Night Mode help automate flow patterns
• Designed for quieter operation with 90% less motor noise (as stated by the manufacturer)
• Offers up to 40% more output (as stated by the manufacturer)
• Compatible with existing WWD and “w” EcoSmart pumps
• Fully compatible with EcoSmart Live via ReefLink

Specifications:

• MP10w QD – Dimensions (Dry-Side): 2.50 x 2 in (63.5 x 50.8 mm)
• MP10w QD – Dimensions (Wet-Side): 2.50 x 1.5 in (63.5 x 38.1 mm)
• MP10w QD – Flow Range: 200–1,500 gallons per hour (750–6,000+ L/h)
• MP10w QD – Tank Thickness / Clearance Behind Tank: Max thickness 0.375 in (9.5 mm); clearance needed 2.25 in (57 mm)
• MP10w QD – Tank Size Range: 2.5–50+ gal (9.5–190 L)
• MP10w QD – Wattage: 8–18 W
• MP40w QD – Dimensions (Dry-Side / Wet-Side): 3.00 x 2.25 in (76.0 x 57.0 mm) / 3.00 x 3.00 in (76.0 x 76.0 mm)
• MP40w QD – Flow: 4,500+ gallons per hour (17,000+ L/h)
• MP40w QD – Tank Thickness / Clearance Behind Tank: Max thickness 0.75 in (19 mm); clearance needed 3 in (76 mm)
• MP40w QD – Tank Size Range: 50–500+ gal (190–1,800 L)
• MP40w QD – Wattage: 9–28 W
• MP60w QD – Dimensions (Dry-Side / Wet-Side): 4.00 x 3.00 in (102 x 76 mm) / 4.00 x 2.80 in (102 x 71 mm)
• MP60w QD – Flow Range: 3,500–7,500 gallons per hour (13,000–28,000 L/h)
• MP60w QD – Tank Thickness / Clearance Behind Tank: Tank thickness range 0.375–1.00 in (9.5–26 mm); clearance needed 3.30 in (84 mm)
• MP60w QD – Tank Size Range: 120–1,000+ gal (450–3,800 L)
• MP60w QD – Wattage: 10–60 W
