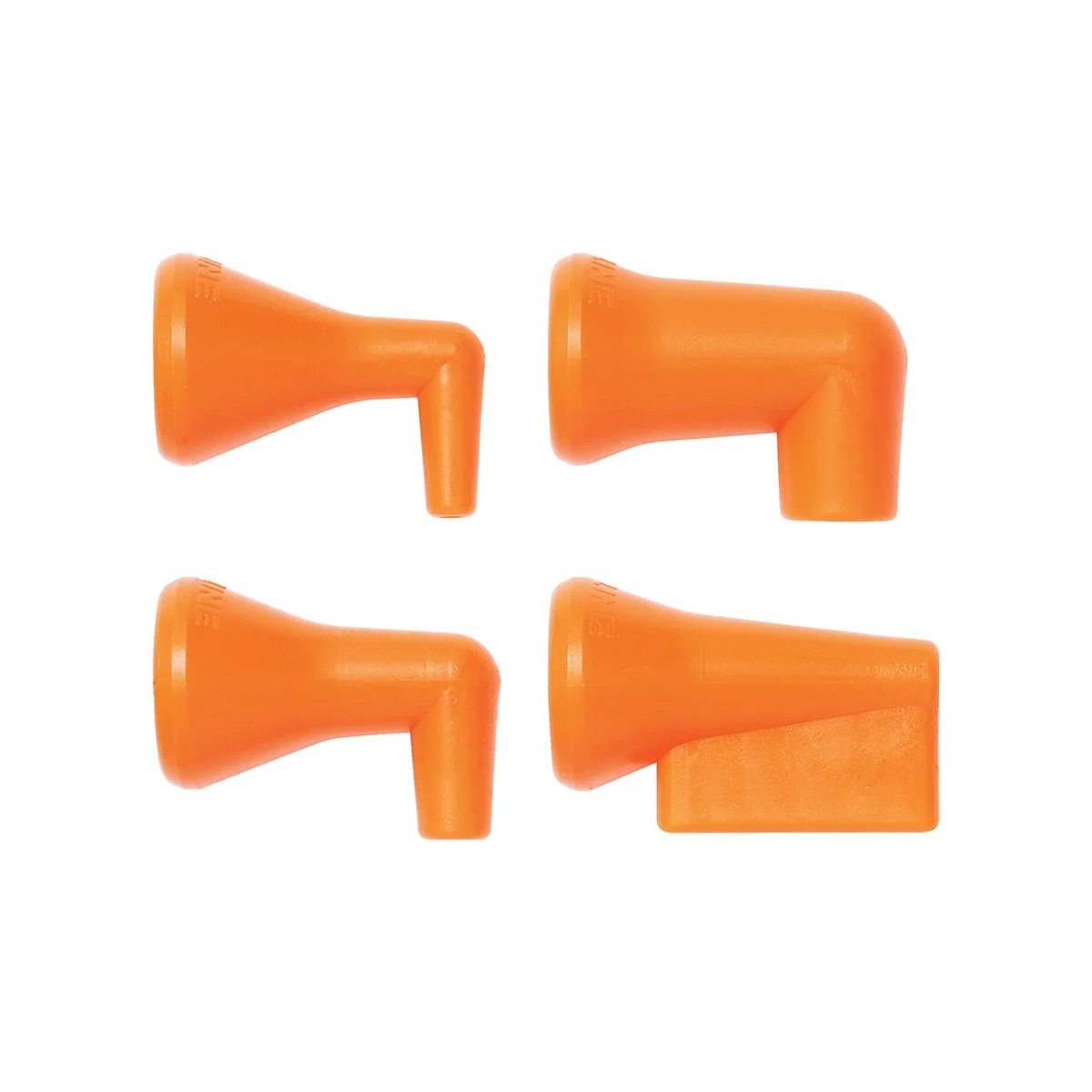

41474 Loc-Line 90 Degree Nozzle Kit for 1/4″ ID System, pack of 4 nozzles

Product details

41474 Loc-Line 90 Degree Nozzle Kit for 1/4" ID System, pack of 4 nozzles is a plumbing accessory designed for use with a 1/4" internal-diameter (ID) piping system. This kit provides four 90° nozzle heads to create a broad, perpendicular spray where you need directed flow in tighter spaces—useful for cleaning, rinsing, or coating applications that benefit from 90° dispersion.

Features:

• Includes four 90° nozzle heads for a 1/4" ID piping system (pack of 4)
• Provides a 90° spray pattern with uniform coverage across four quadrants
• Uses a 3/23 flange connection that mates to a 1/4" ID line
• Sealed with an O-ring retained design to help support leak-free operation
• Built for continuous operation as part of an assembled nozzle line
• Operates across a temperature range of –20 °C to +120 °C
• Assembly is designed for controlled tightening using a specified torque range

Specifications:

• SKU/Model: 41474
• Outlet size: 1/4" (6.35 mm)
• Spray angle: 90°
• Connection: 3/23 flange to 1/4" ID line
• Material: 316L stainless steel (or FR alloy)
• Max pressure: Up to 90 psi (material-dependent)
• Operating temperature: –20 °C to +120 °C
• Assembly torque: 5–7 Nm (±1 Nm)
• Pack size: 4 nozzles
