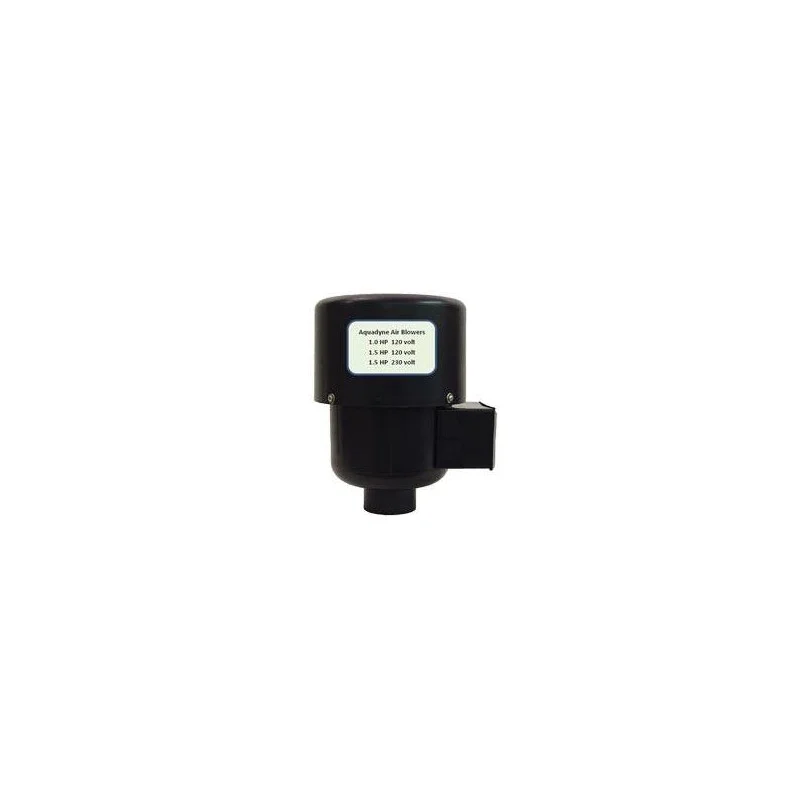

Aquadyne 1.5 HP Replacement Blower – Dynamax Air Assist Bead Filter Cleaning System

About This Product

The Aquadyne 1.5 HP Replacement Blower is a powerful, heavy-duty air blower designed to restore efficient cleaning performance to compatible Aquadyne bead filtration systems. Engineered for use with Aquadyne’s Dynamax Air Assist filtration technology, this genuine replacement blower delivers the high-volume airflow needed to agitate bead filter media, loosen trapped debris, and improve the effectiveness of routine filter backwashing.

Maintaining proper filtration is essential for healthy koi ponds, ornamental water gardens, aquaculture systems, and other aquatic environments. Over time, bead filters accumulate organic debris, fish waste, and suspended particles that must be removed to maintain consistent water circulation and filtration performance.

The Aquadyne 1.5 HP blower simplifies this maintenance process by forcing air through the bead media during the filter’s cleaning cycle. The powerful airflow agitates and separates the filter beads, helping dislodge accumulated waste before it is flushed away during backwashing.

Designed for efficient bead filter cleaning, the blower can help loosen accumulated debris in approximately one to three minutes when operated under suitable conditions. This reduces the physical effort required for filter maintenance and helps maintain effective filtration.

The 1.5 horsepower motor provides the airflow needed for larger Aquadyne filtration systems, including the AD8000, AD8000HE, AD16000, and AD30000 models equipped with compatible air-assist assemblies.

Unlike conventional pond aerators, this blower is designed specifically for intermittent operation during filter maintenance. It is not intended to provide continuous oxygenation to a pond or aquarium.

The unit features a thermally protected motor, bottom discharge design, and acoustic dampening intended to reduce operating noise. Its compact configuration allows replacement of the original blower on compatible Aquadyne systems without replacing the complete filtration assembly.

Available in 115/120-volt and 230-volt configurations, the Aquadyne 1.5 HP Replacement Blower provides a practical maintenance solution for residential koi ponds and compatible commercial filtration installations.

Whether you’re replacing a worn-out blower, restoring proper bead filter backwashing, or maintaining a large koi pond filtration system, this genuine Aquadyne replacement component helps keep your filtration equipment operating effectively.

Features:

• Powerful 1.5 HP motor delivers high-volume airflow for cleaning compatible Aquadyne bead filters.
• Designed for Aquadyne Dynamax Air Assist systems restores the air-agitation function of supported filtration equipment.
• Efficient bead media agitation helps separate filter beads and loosen accumulated organic waste.
• Supports effective backwashing helps remove trapped debris and maintain proper filter performance.
• Approximately 1–3-minute cleaning cycle can help loosen debris quickly under suitable operating conditions.
• Genuine Aquadyne replacement component intended for compatible factory-equipped filtration systems.
• Compatible with multiple Aquadyne models including AD8000, AD8000HE, AD16000, and AD30000 configurations.
• Thermally protected motor provides protection against overheating under specified operating conditions.
• Bottom through-flow discharge provides the airflow outlet configuration used by the blower assembly.
• Acoustic dampening helps reduce operating noise during cleaning cycles.
• Replacement power cord included simplifies electrical connection to the appropriate power source.
• Available voltage configurations accommodate compatible 115/120V and 230V installations.
• Restores filter cleaning capability without requiring replacement of the entire bead filter.
• Ideal for koi pond filtration supports the maintenance requirements of larger ornamental pond systems.
• Suitable for compatible commercial systems including certain aquatic display and aquaculture installations.
• Designed for intermittent operation during the bead filter backwashing process.
• Helps maintain filtration efficiency by facilitating regular removal of accumulated debris.
• Practical replacement solution for aging or malfunctioning Aquadyne blower assemblies.

Specifications:

Specification	Details
Brand	Aquadyne
Product Name	1.5 HP Replacement Blower
Product Type	Bead Filter Air-Assist Replacement Blower
Motor Power	1.5 HP (manufacturer’s nominal designation)
Standard Voltage Option	115/120V AC
Alternative Voltage Option	230V AC
115/120V Part Number	BLO15 / ADBL1.5, depending on distributor
230V Part Number	BLO230
Motor Protection	Thermal Protection
Air Discharge	Bottom Through-Flow
Discharge Connection	2 inches on published 120V BLO15 model
Power Consumption	Approximately 900 watts on published 120V BLO15 model
Current Draw	Approximately 7.5 amps on published 120V BLO15 model
Power Cord Length	Approximately 3 feet on published 120V BLO15 model
Noise Reduction	Acoustic Dampening
Operating Mode	Intermittent Filter Cleaning
Primary Application	Bead Filter Backwashing
Compatible Filter Type	Aquadyne Dynamax Air Assist Bead Filters
Continuous Pond Aeration	Not Intended
Power Cord	Included
Plumbing Fittings	Not Included Unless Specifically Listed
Installation	Replacement on Compatible Factory-Equipped Filters

Compatible Aquadyne Filter Models

The 1.5 HP blower is listed for the following compatible Aquadyne bead filter systems:

Aquadyne Model	Previous Model Designation
AD8000	2.2B
AD8000HE	2.2BHE
AD16000	4.4C
AD30000	8.8C

Compatibility depends on the specific filter generation, blower connection, and electrical configuration.

Important: This is a replacement blower for compatible Aquadyne filters already equipped with an air-assist blower assembly. It is not a complete retrofit kit for filters manufactured without blower support.

How the Aquadyne Air Assist System Works

Aquadyne bead filters use floating bead media to capture suspended debris while providing surface area for beneficial biological filtration.

During normal operation, water passes through the bead filter, allowing the media to trap solid waste and support beneficial bacteria.

Over time, collected debris accumulates within the filter and must be removed.

Air-Assisted Cleaning Process

1. Stop normal filtration: Shut down the circulation pump according to the Aquadyne filter’s operating instructions.
2. Select the proper cleaning configuration: Position the filter valves as directed by the manufacturer.
3. Activate the air blower: The blower introduces a powerful stream of air into the bead chamber.
4. Agitate the filter media: Air movement helps separate the beads and loosen accumulated waste.
5. Perform the backwash cycle: Flush suspended debris from the filter according to the manufacturer’s procedure.
6. Rinse and restore operation: Complete any required rinse cycle before returning the filter to normal circulation.

The air blower is used only during the appropriate cleaning sequence and should not operate continuously during normal filtration.

Installation and Replacement Instructions

1. Disconnect Electrical Power

Turn off the pond circulation pump and disconnect power to the existing blower.

Follow appropriate electrical safety procedures before beginning maintenance.

2. Verify the Replacement Model

Confirm that your existing Aquadyne filter uses a compatible 1.5 HP air blower.

Check the original blower’s voltage, electrical requirements, connection size, and model designation.

Do not substitute a 230V blower for a 115/120V system or vice versa without the appropriate electrical installation.

3. Remove the Existing Blower

Disconnect the original blower from its electrical supply.

Carefully remove the blower from the filter’s air-assist plumbing connection.

Inspect the existing fittings and mounting area for wear, damage, or obstructions.

4. Install the Replacement Blower

Position the new Aquadyne blower in the intended location.

Connect its discharge outlet to the compatible air-assist assembly using appropriate existing or separately purchased fittings.

Ensure all connections are secure and properly aligned.

5. Protect the Electrical Components

Place the blower in a suitably protected, ventilated location.

Although the blower may be used in pond equipment installations, it must be protected from rainwater, standing water, and direct exposure to moisture.

Avoid placing the blower where water could enter its air intake or electrical components.

6. Test the System

Restore power and operate the blower according to the Aquadyne filter’s backwashing instructions.

Confirm that the blower produces airflow and that the filter media is properly agitated.

Check for unusual noises, overheating, air leaks, or loose connections.

7. Return the Filter to Service

Complete the normal backwash and rinse procedures before restoring regular pond filtration.

Maintenance and Care Recommendations

Inspect the blower periodically for dust accumulation, loose connections, damaged cords, and unusual operating sounds.

Keep the air intake and discharge path free of obstructions.

Protect the unit from rain, splashing pond water, and standing moisture.

Allow adequate ventilation around the motor to prevent overheating.

Do not operate the blower against blocked or improperly positioned filter valves.

Inspect associated plumbing connections for leaks and deterioration.

Follow the Aquadyne filter’s recommended backwashing schedule based on pond size, fish load, feeding levels, and filtration conditions.

If the blower shuts off due to thermal protection, disconnect power and investigate the cause before restarting.

Important Product Information

The Aquadyne 1.5 HP Replacement Blower is intended for compatible Aquadyne bead filtration systems equipped with Dynamax Air Assist technology.

This product is a replacement blower only. It is not a complete pond filter, water circulation pump, or continuous-duty aeration system.

Two electrical versions are commonly available:

• 115/120V version: For compatible North American installations.
• 230V version: For installations designed for the appropriate higher-voltage configuration.

Electrical ratings and included fittings may differ between versions. Verify the exact model and configuration before purchasing.

The standard replacement blower is intended to replace an existing factory-installed blower. Retrofitting filters that were not originally designed for air-assist cleaning may require additional manufacturer-approved components.

Recommended application: A genuine 1.5 HP Aquadyne replacement blower designed to restore powerful air-assisted cleaning to compatible AD8000, AD8000HE, AD16000, and AD30000 bead filtration systems. Ideal for koi ponds, ornamental water gardens, and aquatic filtration installations requiring dependable bead media agitation and effective backwashing.
