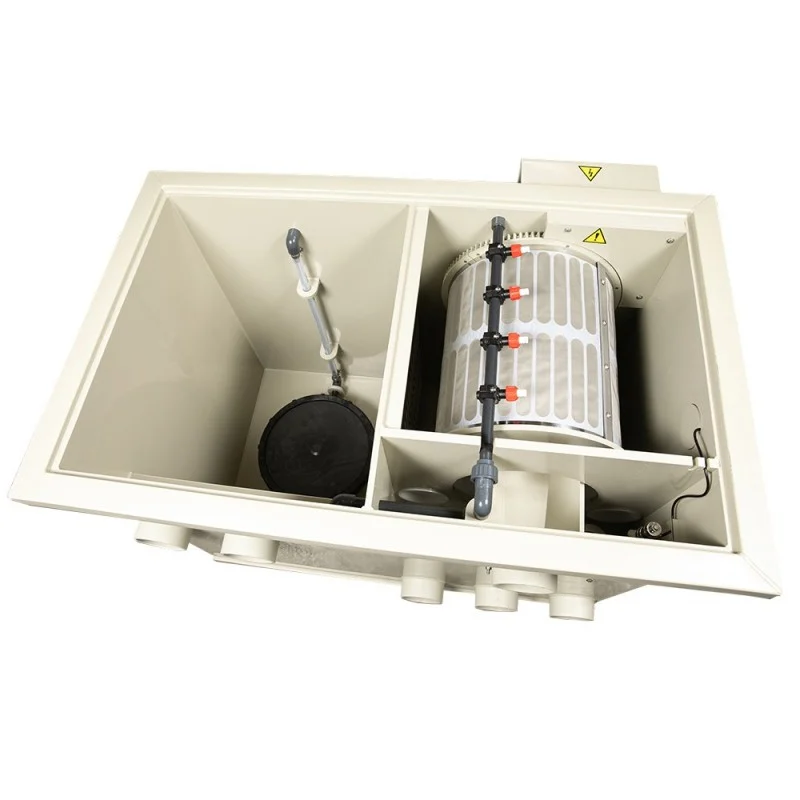

ENTRY C25 RDF Combi – Sea Side

Unit comes with�k1 media and external cleaning up ( required installation )

Maximum Flow 25 m3 / h

Gravity / Airlift / Pump fed

Pump fed loses 30% Flow

Installation height above water level 16 cm

�

Materials:

�

Housing PP 8 mm / PP15 mm / Drum PP 20

Stainless steel 316/304 / Silicone seal

PP Casing Cut With A CNC Machine

�

Specifications:

�

Standard inputs and outputs according to drawing

1 x 110 mm Waste water outlet

Diameter of the drum 38 cm x 40 cm

Sieve panel 120 or 75 micron stainless steel 316

Drum Bypass 2 x 90 mm�

Demountable spray bar

Removable flushing channel

40 NM drive motor with 2.5 rpm

With a lid

�

Control box:

�

Automatic cleaning, plug and play with stainless steel float

Turn / rinse manual control

Adjustable turn / flush time

Rinse level adjustable

Sockets for flushing pump, pond pump and drum drive motor

Standard dry run protection for pond pump

All parts built in modules and therefore quickly interchangeable

Bio chamber for 90 liters of Helix

Air disc of 34 cm

Supplied with comprehensive manual

With CE quality mark
