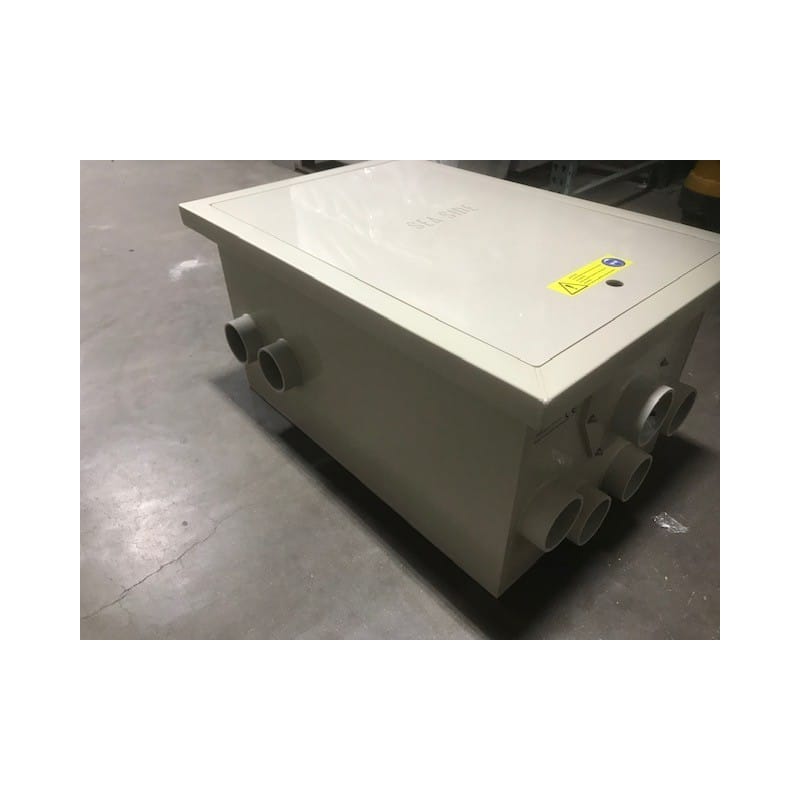

PP-40 RDF W/ 4 Inlets – Sea Side

Unit comes with external cleaning up ( required installation )
Specifications PP-40� ( New Design With��4 INLETS AND OUTLETS PICTURE SHOWED 3 )

MAX Flow 10500GPH
Pond suggested up to 18000GAL
Standard flow is�40 m3 / h
Gravity / Airlift / Pump fed
Installation height 17 cm

Material:

PP 15 mm housing / PP 20 mm drum
Stainless steel 316/304 / Silicone seal

Specifications:

4�x 110 mm inputs
2 x 110 mm outputs (�4 extra 110 mm outputs� on the side for pump fed )
110 mm waste water drain
Diameter drum 40 x 50 cm
Screen panel�120 micron stainless steel 316
Removable waste water container
Spray bar with removable mounting, high pressure PVC 40 bar Cover
Control box on filter
Turn / flush manual operation
Rinse level adjustable
Turn / rinse time adjustable

All components assembled in modules and therefore quickly interchangeable
