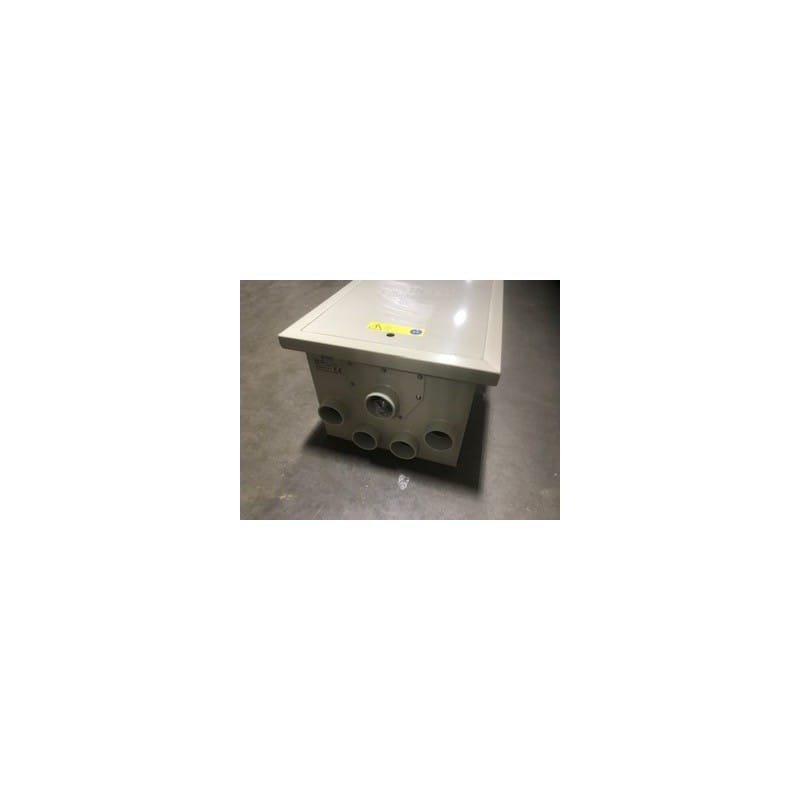

PP-35 Wifi Version RDF – SeaSide

Unit comes with external cleaning up ( required installation )
Specifications PP-35� ( New Design With��4 INLETS AND 2 OUTLETS PICTURE SHOWED 3 )

This is our newest wifi / digital controller that only with with 2 probe sensor and with other add on options like:

Wifi ( Included )
SMS message ( Not Included )
Temperature ( Not Included )
Water Level Sensor ( Not Included )
Water Top Off ( Not Included )
Force Cleaning ( Included )
Automatic Waste Tray Wash ( Included )
and many more features please click on the below link to have access to the pdf files

Wifi Version Instruction
MAX Flow 9250GPH
Pond suggested up to 18000GAL
Standard flow is 35 m3 / h
Gravity / Airlift / Pump fed
Installation height 17 cm

Material:

PP 15 mm housing / PP 20 mm drum
Stainless steel 316/304 / Silicone seal

Specifications:

4�x 110 mm inputs
2 x 110 mm outputs (�4 extra 110 mm outputs� on the side for pump fed )
110 mm waste water drain
Diameter drum 40 x 50 cm
Screen panel 75 micron stainless steel 316
Removable waste water container
Spray bar with removable mounting, high pressure PVC 40 bar Cover
Control box on filter
Turn / flush manual operation
Rinse level adjustable
Turn / rinse time adjustable

All components assembled in modules and therefore quickly interchangeable

Click Here For Additional Information
