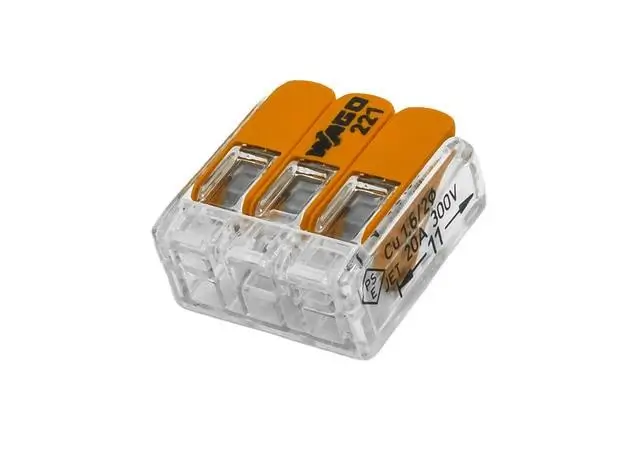

WAGO 221-413

Features

The WAGO 221-413 lever nut is a simple and easy way to connect up to three wiresPlease note that we do not generally recommend using quick connects on the DC side (between driver and LED string). If doing so, ALWAYS ensure you unplug/power down the driver before re-connecting wires

Specifications

SKU :�221-413AWG Wire: 12-24 (solid or standed)Nominal Current :�20ANominal Voltage :�600VOperating Temperature :�105�C

Instructions

Simply lift the�orange tab, insert one stripped wire into each slot, and push orange tab back down. The�wires are now connected. All three slots do not need to be used.For correct usage, wire strip length, and more details please see the�WAGO 221 Series Specification Sheet
