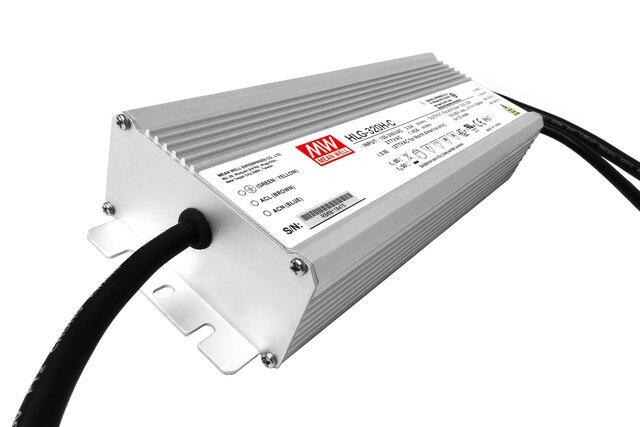

Mean Well HLG-320H-C2100B

Features

*The listed price currently includes the increased 25% “trade war” tariffMean Well’s HLG-C series drivers are especially great for running COB arrays or a high number of LEDs in seriesThis driver can be dimmed with an external controller/potentiometer. Not attaching anything to the dimming wires will run the driver at 100% current output (2100mA)A�power cord�does not come with the driver and will need to be purchased separately

Specifications

SKU :�HLG-320H-C2100BOutput Voltage (DC) :�76-152V (~3-4 X 36V COBs Or ~25-50 X 3V LEDs)Max Output Current :�2100mAInput Voltage (AC) :�90-305VACAC Current :�3.5A/115VAC, 1.65A/230VACDimming Signal :�0-10V Analog, 10V PWM, ResistanceEfficiency :�94%Dimensions :�9.95″ X 3.55″ X 1.73″Weight :�4.15 lbs

Instructions

Mean Well HLG-320H-C Series Datasheet
