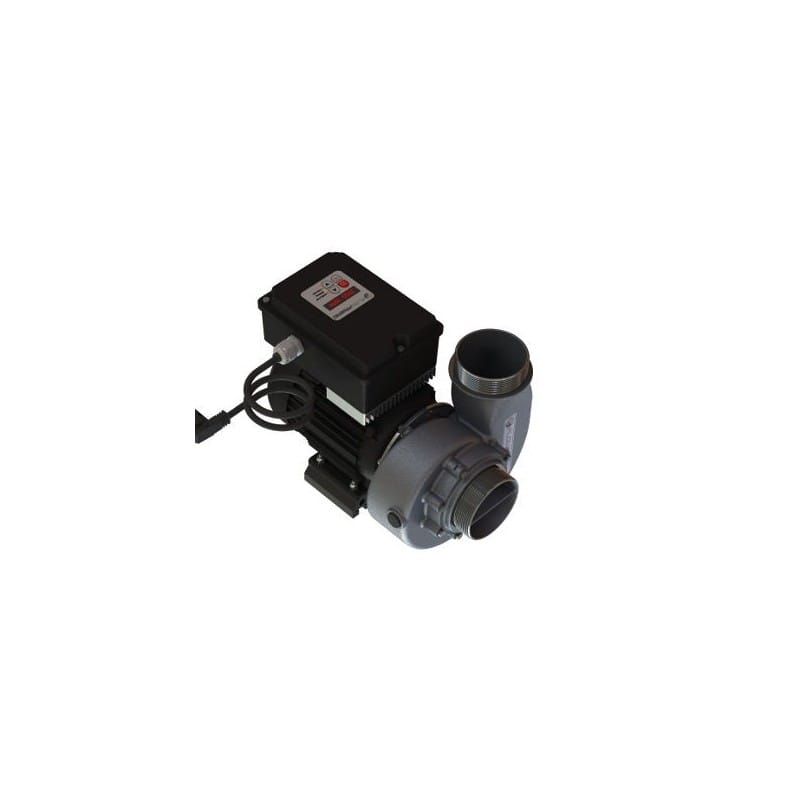

FlowFriend Standard Pump

Features:
�

Energy efficient
Adjustable flow/RPM rate
Optional 0-10V control
Very quiet operation
Efficient next gen permanent magnet motor
316 grade stainless steel wet end construction
Premium efficiency IE4 motor
Motor developed and manufactured in Germany
Worldwide application, accepts voltages ranging from 100 – 240V / 50 – 60 Hz

�
�
Adjustable motor speed (600 – 2,550 RPM) is a standard feature on all FlowFriend pumps. The digital display on top of the motor shows current power consumption and hours of operation. The 0-10V port allows for external control.
Utilizing a permanent magnet motor instead of a frequency controlled asynchronous motor allows for very high energy efficiency at low RPM. Even at high RPM, the permanent magnet motor is still very energy efficient.

Stainless Steel Pump Housing

The hydraulic wet end consists of the stainless steel impeller and impeller housing. FlowFriend uses 316 grade stainless steel. The hydraulic wet end was designed and shaped to keep flow losses minimal.

Flow Friend Pump Performance:

0700 rpm: 18m3/hour @ 0 meter @ 40 Watt
1100 rpm: 30m3/hour @ 0 meter @ 80 Watt
1500 rpm: 41m3/hour @ 0 meter @ 145 Watt
1900 rpm: 51m3/hour @ 0 meter @ 195 Watt
1200 rpm: 20m3/hour @ 1 meter @ 120 Watt
1400 rpm: 29m3/hour @ 1 meter @ 160 Watt
1800 rpm: 42m3/hour @ 1 meter @ 260 Watt
2100 rpm: 50m3/hour @ 1 meter @ 360 Watt
1600 rpm: 20m3/hour @ 2 meter @ 230 Watt
1800 rpm: 31m3/hour @ 2 meter @ 295 Watt
2000 rpm: 40m3/hour @ 2 meter @ 370 Watt
2300 rpm: 50m3/hour @ 2 meter @ 495 Watt
1900 rpm: 21m3/hour @ 3 meter @ 335 Watt
2000 rpm: 27m3/hour @ 3 meter @ 380 Watt
2200 rpm: 39m3/hour @ 3 meter @ 490 Watt
2500 rpm: 52m3/hour @ 3 meter @ 690 Watt
2200 rpm: 25m3/hour @ 4 meter @ 490 Watt
2300 rpm: 32m3/hour @ 4 meter @ 550 Watt
2400 rpm: 39m3/hour @ 4 meter @ 605 Watt
2400 rpm: 23m3/hour @ 5 meter @ 610 Watt
2500 rpm: 35m3/hour @ 5 meter @ 730 Watt
