Emerson Effect Booster Board

Features

This simple-to-use, plug-and-play two-channel photo and far red board is designed to help increase plant metabolism (yields) via the Emerson Effect. In addition, if you have a controller, you can keep the far red lights on for an additional 15 minutes after lights out for flower initiation. Running without a controller will turn on all the lights at 100% intensity

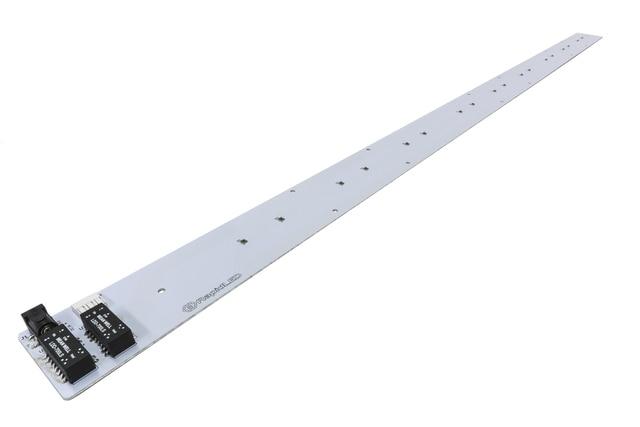

The board comes with 12 x XP-G3 Photo Red and 6 x XP-E2 Far Red LEDs, 2 x Mean Well LDD-700LS drivers, a WAGO connector for dimming, and a DC barrel connector for easy, solderless power

Doesn’t require a separate heatsink, though we recommend using one to provide support/rigidity to the strip. The Supplemental Canopy Heatsink was designed to fit this strip and will slide into the 4′ x 4′ Canopy Substrate. Please select the option with Canopy Brackets if using within a Canopy Substrate

Can be combined with the Emerson or Exotic Booster Boards by using a DC Power Splitter.

If you are using your own power supply, you will need to supply between 30-36VDC constant voltage, and a minimum of 30W per board

Optional Accessories:

-1 x 30VDC Power Supply
-1 x Supplemental Canopy Heatsink
-2 x Eye Bolts and 1 x Rope Ratchet Hanging Kit
