Dosing Pump T02 Replacement MotherBoard Bubble Magus

✅ Available Replacement Option

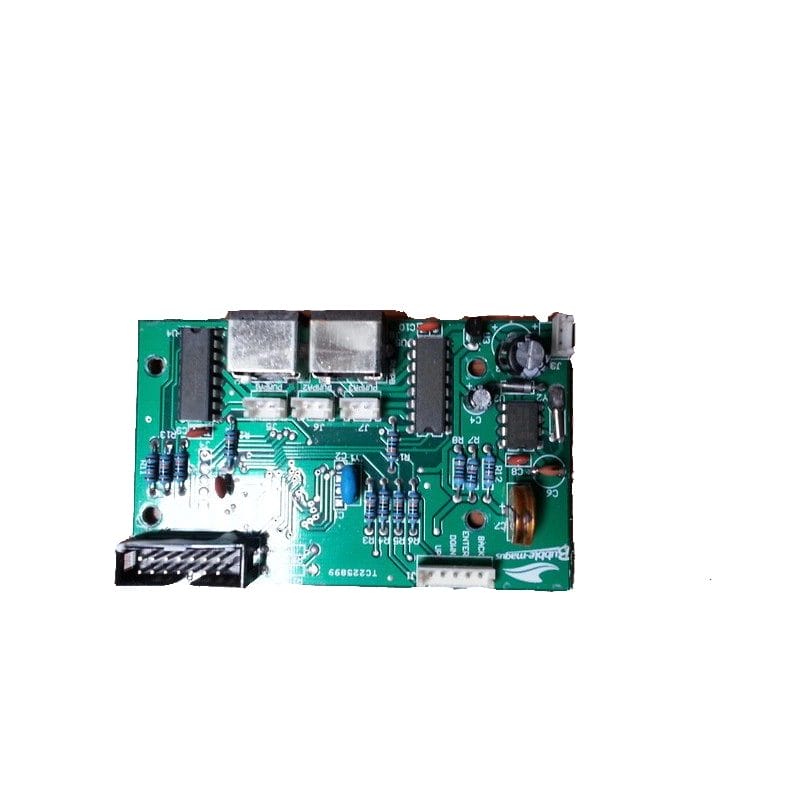

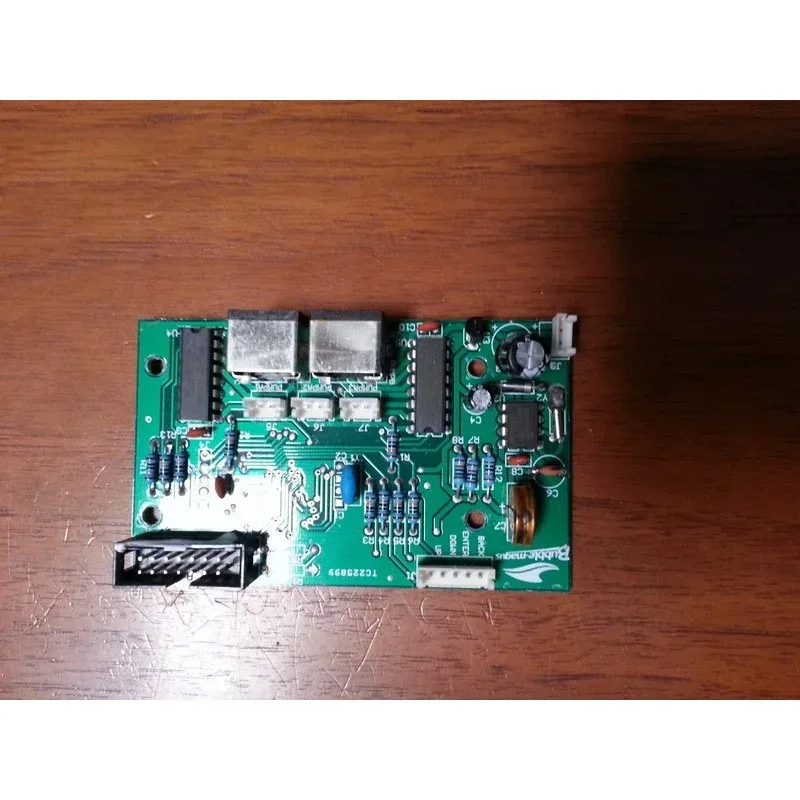

• BUBBLE MAGUS DOSING PUMP T02 SLAVE UNIT MOTHER BOARD — A replacement motherboard intended for the T02 slave/extension unit.

• Note: this is a board for the T02 extension, not for the main T01 controller; it is meant to work in conjunction with a T01.

ℹ️ Important Details & Compatibility Notes

• The BM‑T02 is a 4-head extension unit for the BM‑T01 dosing pump. It does not operate standalone, but draws power and control from the T01 master unit. Ocean Store+1

• If your main controller (e.g., T01) is faulty, replacing only the T02 board may not fix your system, as the master board could still be damaged.

• Make sure the board you buy matches the exact model and revision of your pump (connector types, voltages, pinouts). There can be slight differences in revisions that make a board unusable unless identical.

🛠 Tips for Installing / Verifying

1. Compare the board visually with the one you are replacing—check connector positions, mounting holes, and component layout.

2. Take pictures of wiring before removal so you can reconnect properly.

3. Test with minimal connections first to confirm the board is working before full reassembly.

4. Ensure power safety — shut down power before replacing anything.

5. Check firmware/settings — some boards may need initial configuration or calibration after installation.

This is a replacement board for the Bubble Magus T02 dosing pump.

WE SELL THE BOARD, THE BOARD IS TESTED, AND IT’S IN WORKING CONDITION WHEN IT LEAVES OUR WAREHOUSE.

HOWEVER, THERE IS NO WARRANTY OR GUARANTEE ON THE UNIT.

THERE IS NO WARRANTY OR GUARANTEE ON THE DAMAGE THAT CAUSED WHEN YOU INSTALL IT.
