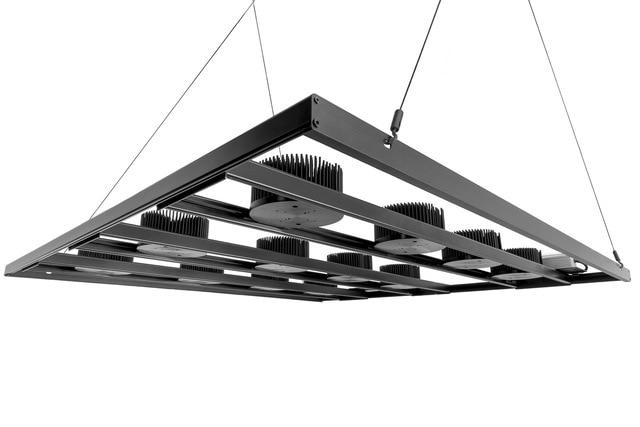

2′ x 2′ Coverage Canopy Substrate

Versatile, sleek, and easy-to-use canopy system for mounting your LEDs without any cutting, drilling, or measuring

The Canopy Substrate is designed to cover a 2′ x 2′ area by sliding in smaller 22″ Canopy Rails, giving you two-axis movement on your pin heatsinks. Each rail set comes with enough brackets for up to 4 pin heatsinks

Pin Heatsinks not included

Optional Driver Brackets will mount any Mean Well HLG-C series driver except the HLG-600 on top of the rails

Optional Rope Ratchets (4 ratchets total) provide an easy way to lower and raise the Substrate with 4 separate mounting points for better stability

Coverage Area: 2′ X 2′

Weight (Full Rails/Ends Only): ~7.5 lbs

Material: Black Anodized Aluminum

Driver Bracket Compatibility: Fits all Mean Well HLG-C Series Drivers Except the Mean Well HLG-600H series

Hanging Kit Breaking Load: 60 lbs

Dimensions: 21.8″ X 23.1″

Tools Needed: Screwdriver, Pliers (Optional)
