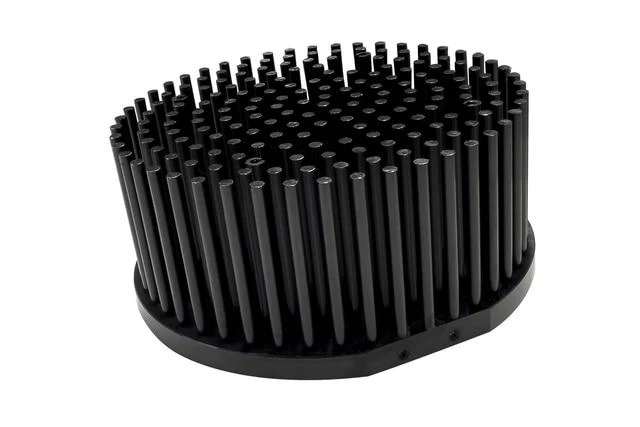

160mm Pin Heatsink
Features
Heatsink comes with two flat sides for easier mounting, two through holes for wire routing, and includes 4 screws for mounting the heatsink as well as 4 screws for mounting your COB/holders.
This is the same heatsink used in our 75W and 100W Plug and Play fixtures. Please note this item will NOT fit our Rail/Substrate system.
Due to the nature of the product, some pins may move slightly during shipping. Feel free to move the pins back to their original position using a string, empty ballpoint pen case, or your finger and a light pull
Specifications
SKU: PN-160MM
Weight: 1.90 Lbs
Dimensions: 160mm Diameter, 155mm Flat End To End
Height: 70mm
Compatible LEDs/Holders: See Features For Full List
Max Power Dissipation: ~80-120W ,Depending On Ambient Temperature
Color: Black
Included Screws: M3 X 8
Compatible LEDs
-Ideal solderless holder 50-2303CR for CREE CXA/CXB3590
-Ideal solderless holder 50-22XX for CXA/CXB3050/3070
-BJB 47.319.2154.50 for CXA/CXB3050/3070
-Bridgelux VERO29 Gen 7 (both with and without poke-in connector)
-Chilled Logic Pucks
$29.00 $
